QC Series Mobile quality testing / Measurement / Inspection stations

Scroll to zoom images +/-.

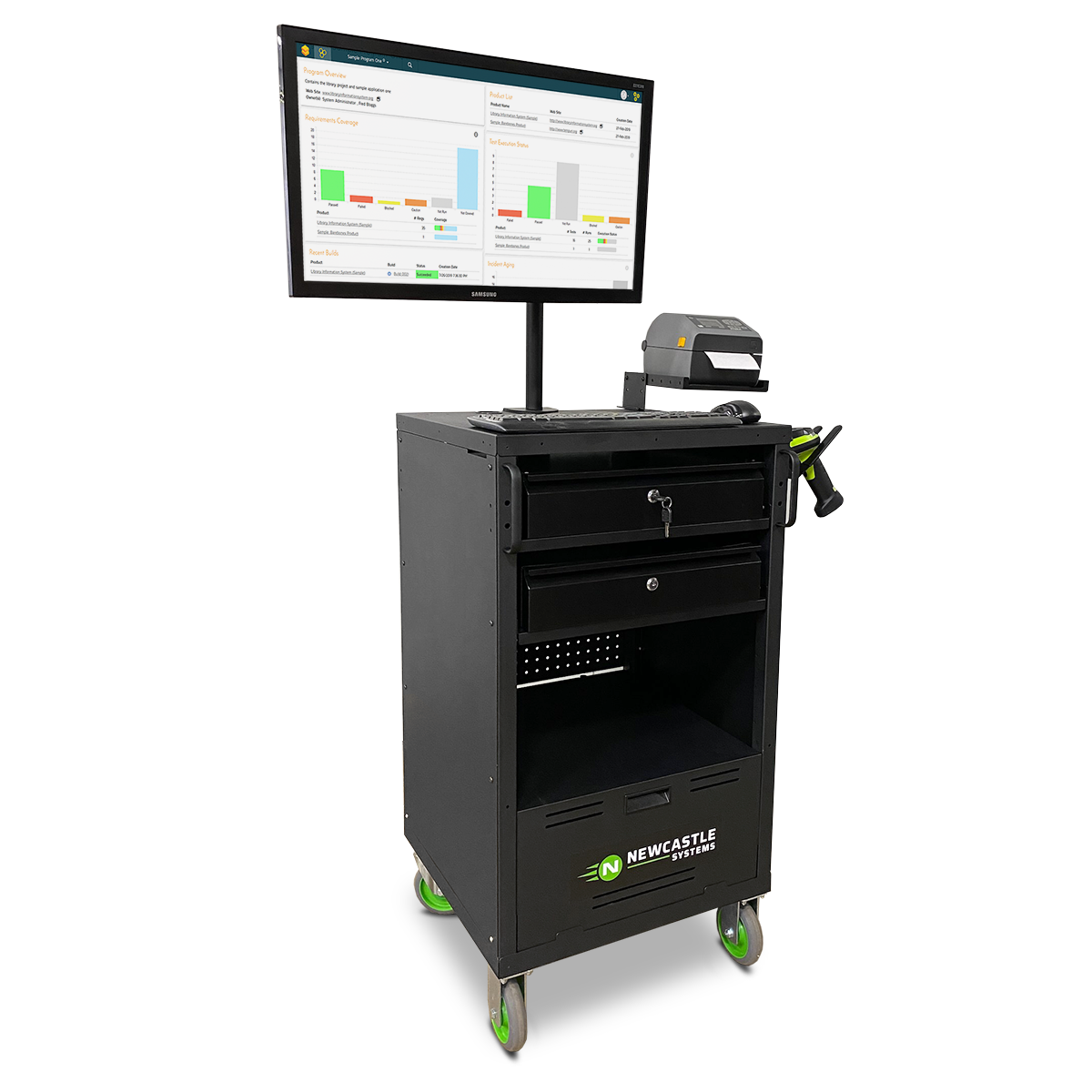

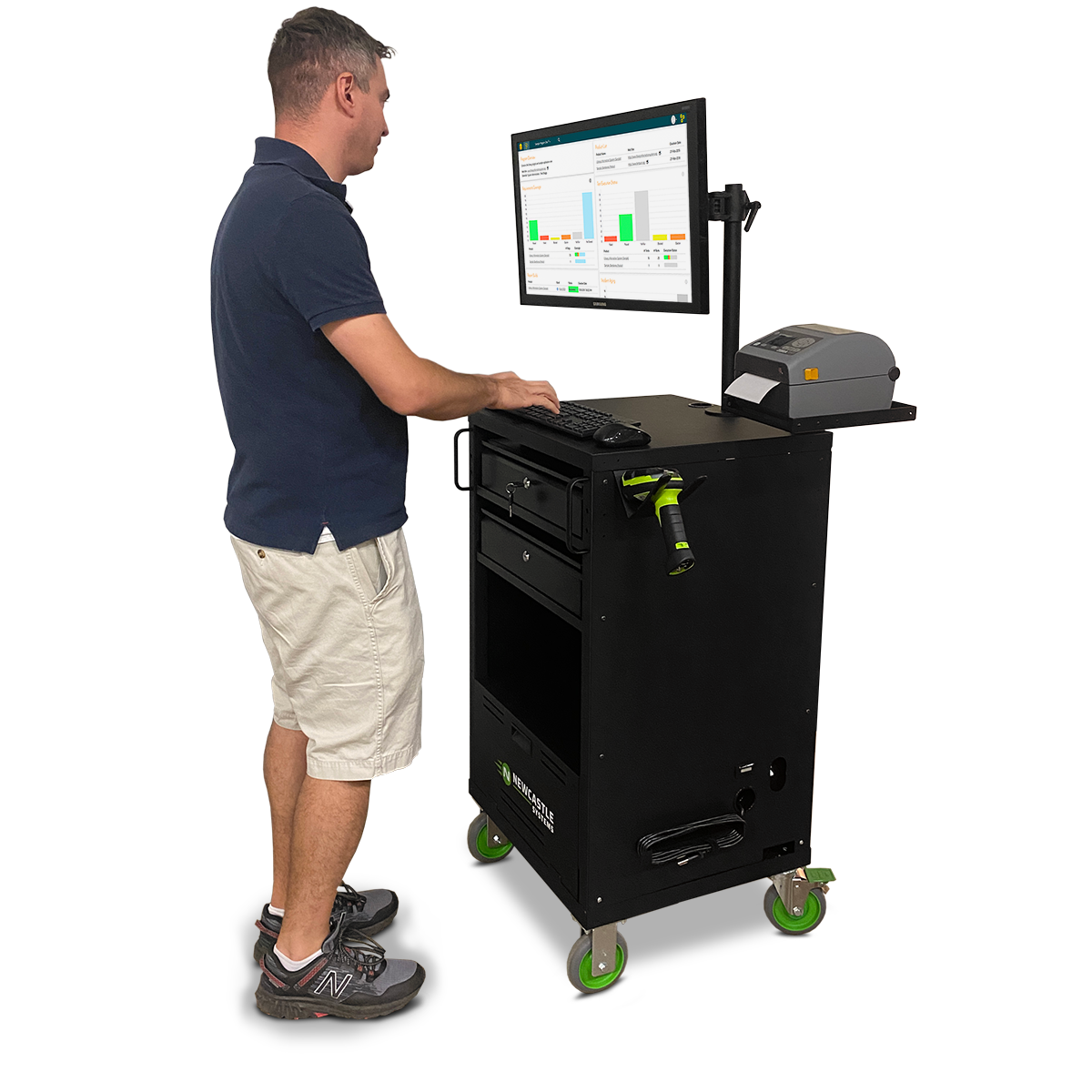

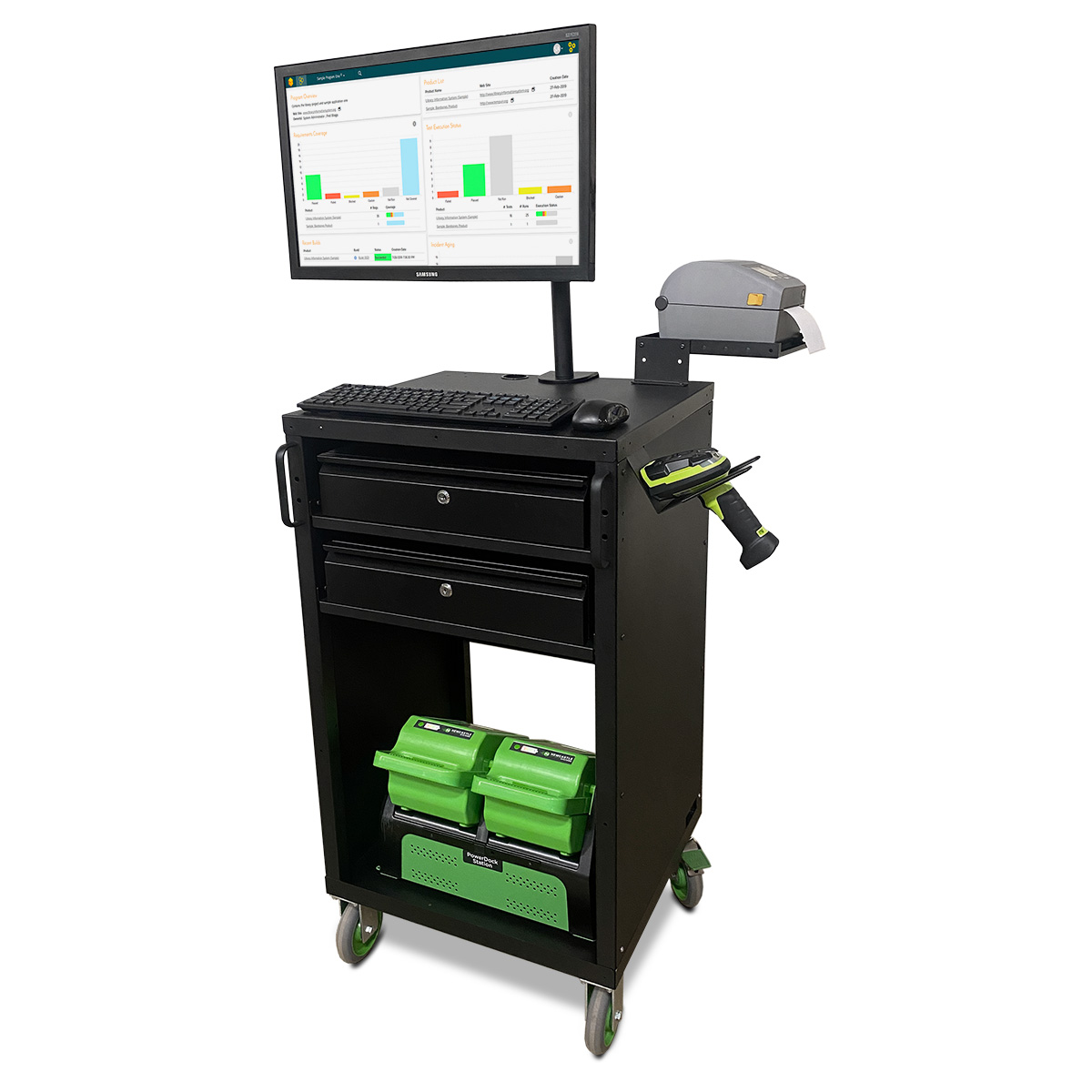

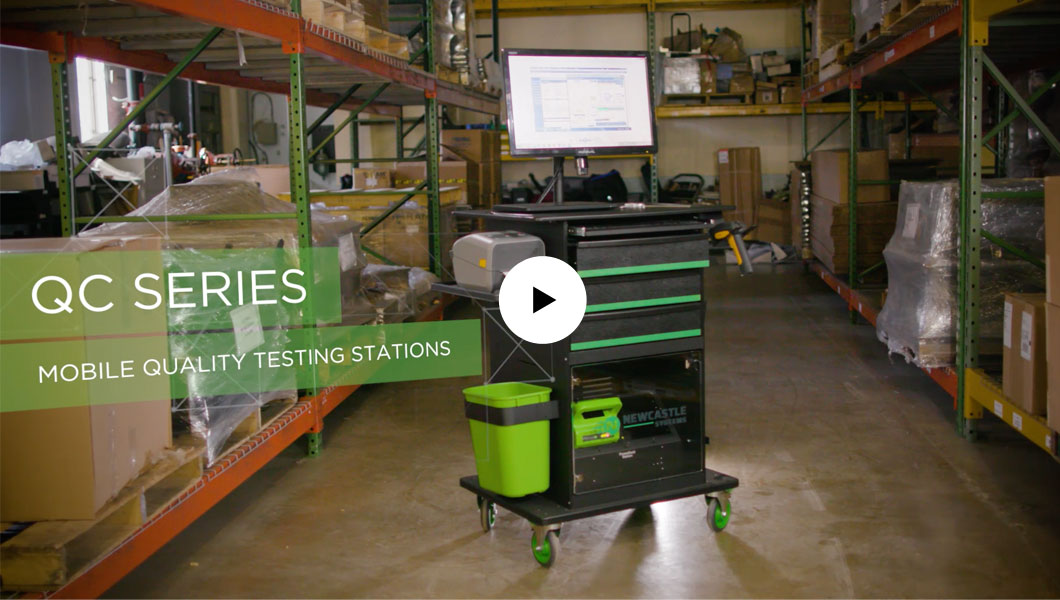

QC Series Mobile Quality Testing Stations

The newly redesigned QC Series Mobile Powered Workstations were designed for mobile quality testing, measurement & inspection, and other processes requiring vast storage capabilities.

Just like every Newcastle Workstation Series, the new QC Series significantly improves productivity by providing seamless AC mobile power to your devices including laptops, tablets, 1-2 LCDs or touchscreens, barcode printers, scanners, testing/inspection devices, and more for 8+ hours at a time.

Outstanding Features Include:

Improving Processes:  Designed to reduce costly worker motion, product transportation and touches on the shop or warehouse floor, resulting in significant productivity gains

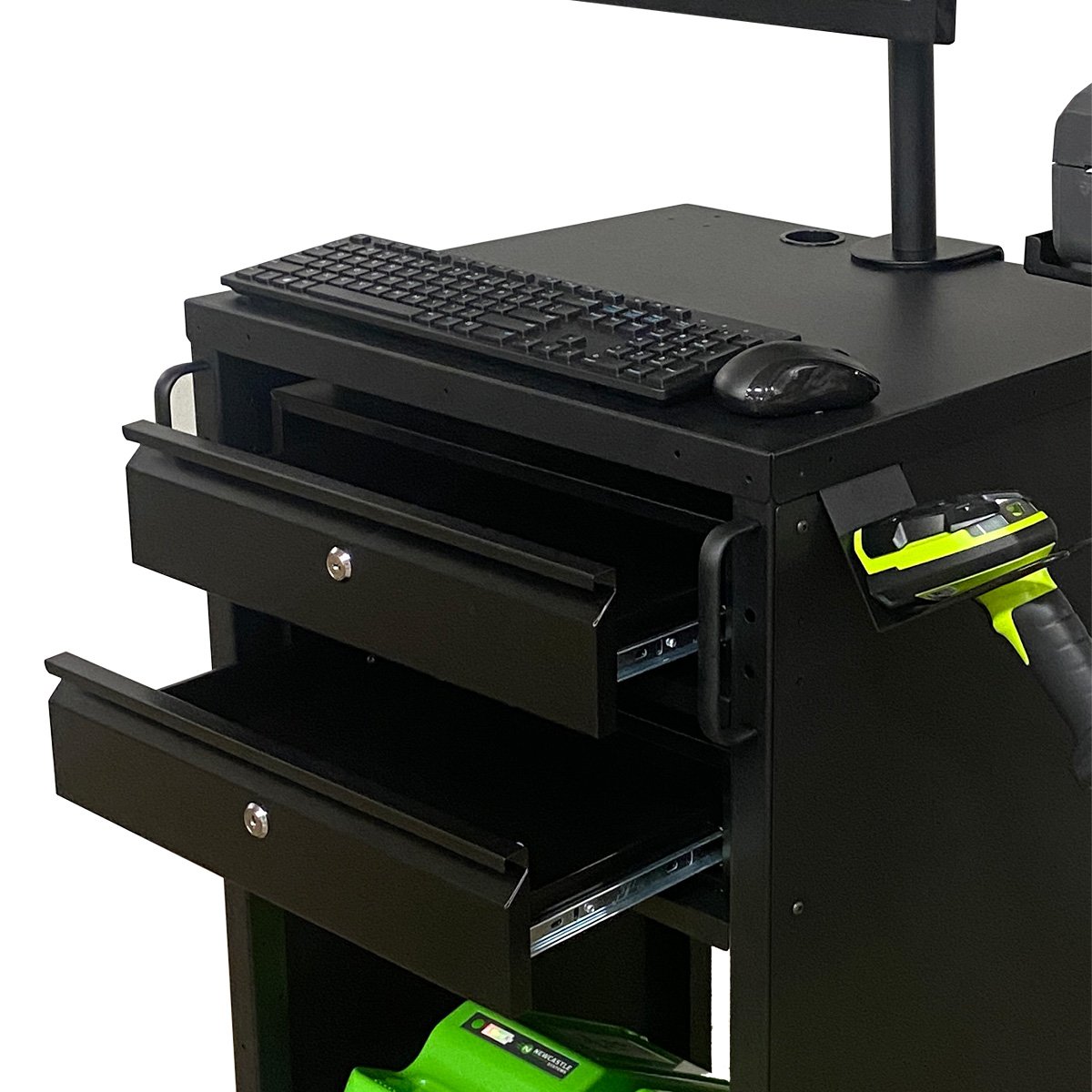

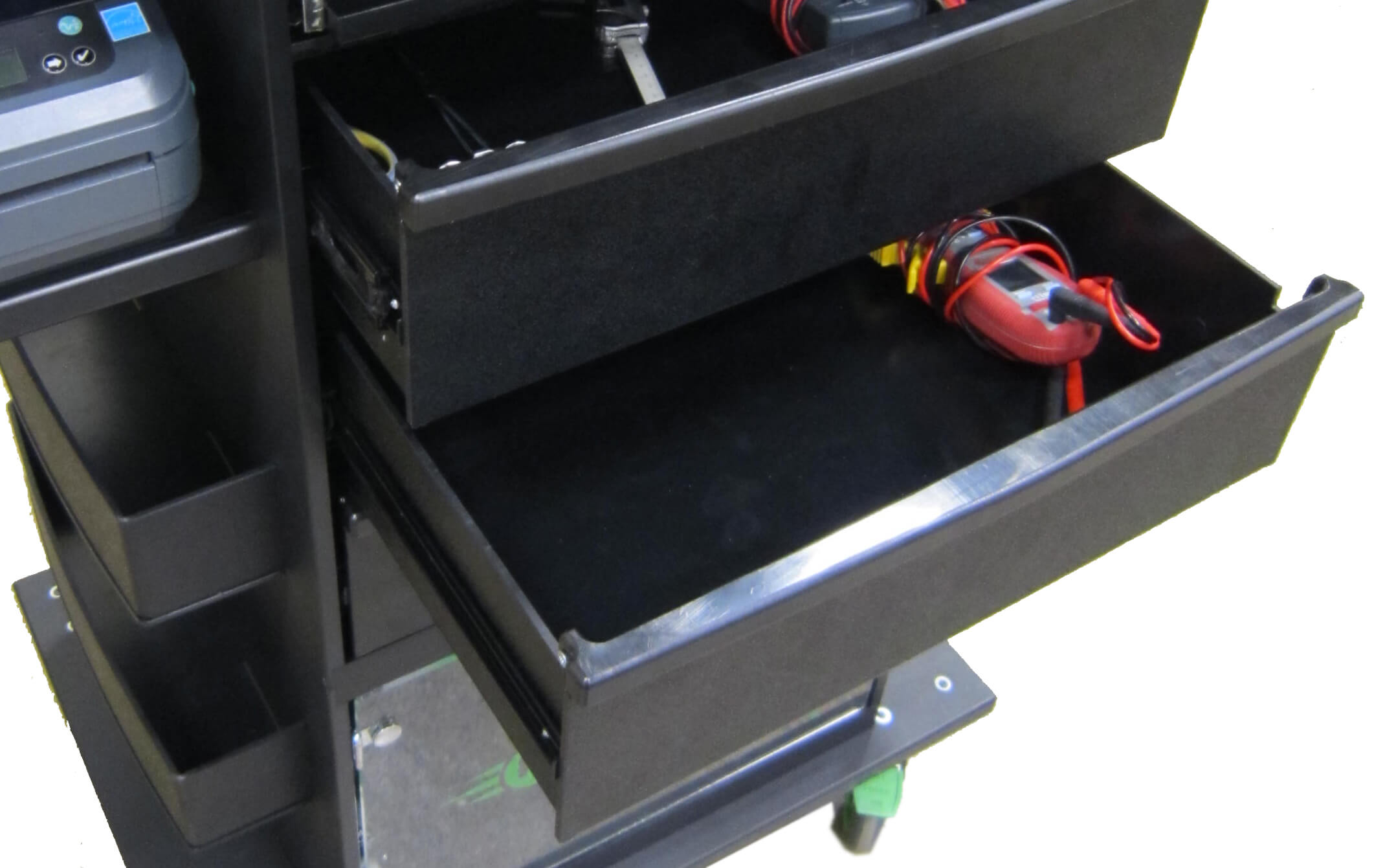

Abundant Storage:  Holds up to 3 locking storage drawers for tools, calipers, and much more.

QA on the Fly: No need to disrupt production as testing can now be performed right at the product/line

Hardware-Friendly:  Quiet, seamless AC power (no need to source for DC-specific hardware)

Power System to Fit Your Needs:  Swappable lightweight lithium batteries for 24/7 operation or SLA for 8-12+ hours of operation

Data Sheet: QC Series Quality Testing Powered Carts

Popular Applications

Manufacturing/Shop Floor

  • Visual work instruction
  • Asset tracking
  • Measure & inspect
  • Operational training
  • Batch track & trace
  • Supervisor floor station
  • Maintenance station
  • Quality Assurance

Warehouse/DC

  • Inventory control / cycle counting
  • Supervisor floor station
  • Asset tracking
  • Maintenance  station

Typical Productivity Gains

 Click on images to view larger.

QA Testing Before Mobile Power


QA Testing After Mobile Power

Power & Run Time

Model number represents the configured power system to handle your power requirements.

Typical Devices Powered for 8+ Hours Recommended Model Configurations
Laptop/thin client, small or mid-range thermal printer & scanner icon-laptop-1 icon-sm-printer-1 icon-scanner
Laptop/thin client, LCD, industrial thermal printer & scanner icon-laptop-1 icon-lg-printer-1 icon-scanner



ROI Calculator

Use Newcastle Systems' ROI Calculator to calculate potential savings when you eliminate unnecessary walking to and from a static computer, high-volume printer or other electronic equipment used in your work process. --- Adjust the values below to better reflect values for your company.

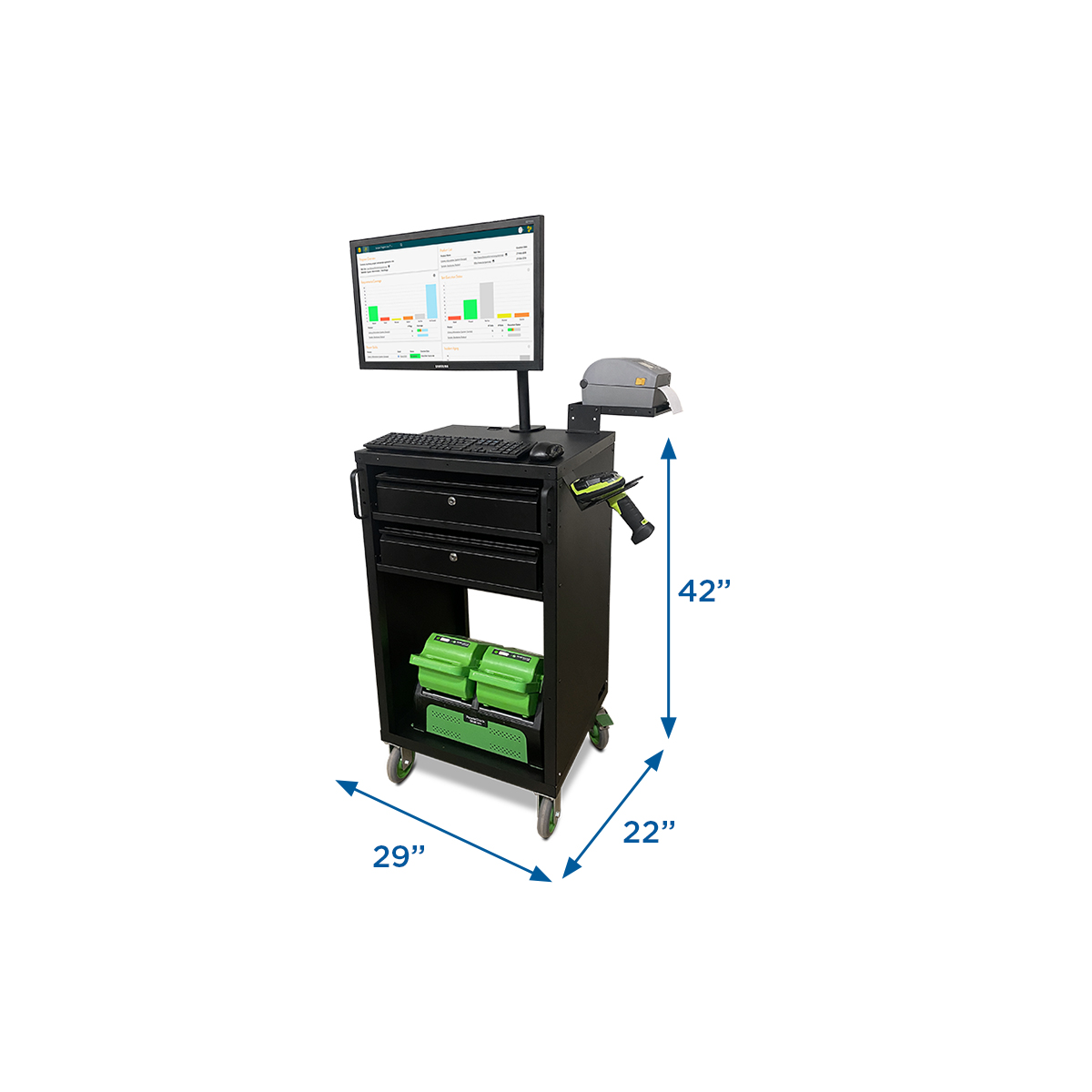

Technical Data/Configurations

All QC Series Mobile Powered Workstations listed below come standard with (one) lockable drawer, waste basket & holder, 5" locking casters, and integrated power system.

Model number represents the configured power system to handle your power requirements.

Lithium Iron Phosphate

Model  Continuous Output Power (W) Surge Power Battery Bank (Wh) Charge Time (Hrs) Operating Temp. Range (F)

QC104NUR

120 550 460 4.5  50-104°

QC207NUR

 120 (1 battery) or 240 (2 batteries) 550 / 825 460  / 920 4.5  50-104°



Sealed Lead Acid

Model  Continuous Output Power (W) Surge Power Battery Bank (Wh) Charge Time (Hrs) Operating Temp. Range (F)
QC504R 450 900 480 4 32-95°
QC510R 450 900 1200 9 32-95°
QC1010R 1000 2000 1200 5 32-104°



Non-Powered

Model  Continuous Output Power (W) Surge Power Battery Bank (Wh) Charge Time (Hrs) Operating Temp. Range (F)
QC1000R  NA NA NA NA  NA
