EC102NU1M/102NU2M MOBILE POWERED WORKSTATION

Scroll to zoom images +/-.

EC102NU1M / 102NU2M Mobile Powered Workstation

The EC102NU1M comes standard with: (1) top shelf, locking casters, front push handles, wastebasket and holder, integrated power dock, (1) swappable battery packs, and (1) battery charging station.

The EC102NU2M comes standard with: (1) top shelf, locking casters, front push handles, wastebasket and holder, integrated power dock, (2) swappable battery packs, and (1) battery charging station

Data Sheet: EC Series Compact Powered Carts

Workstation

Height Adjustable:

Optional middle shelf adjustable from 20” – 32” (508 x 813 mm)

Shelf:

Top shelf: 21.75” wide x 20” deep metal (552 x 508 mm)
Optional middle shelf: 20" wide x 20" deep metal (508 x 508 mm)

Shelf Capacity:

 60 lbs. (27 kg) per shelf evenly distributed

Casters:

5" x 2" (127 x 50 mm) rubber wheels, front fixed, rear locking swivel

Most Popular Optional Accessories:

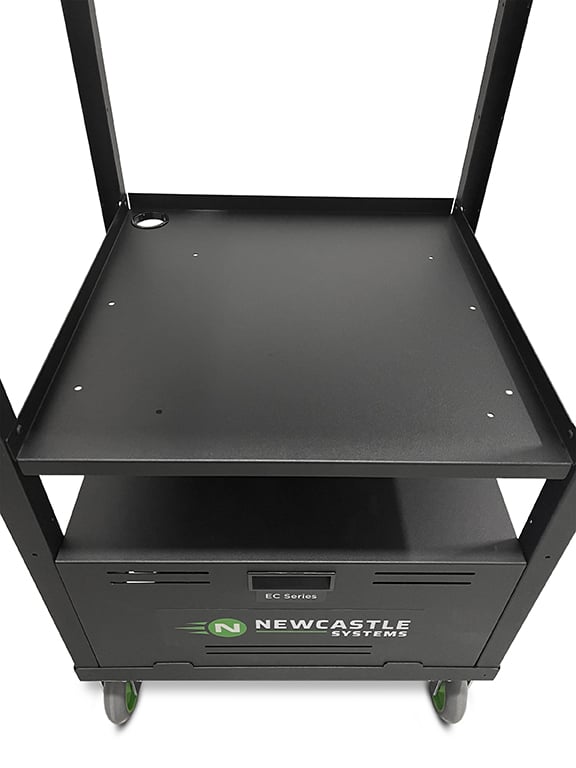

B423 – Middle Shelf
B407 – Keyboard Tray
B266 – LCD Holder and Post or B112 - Laptop Holder
B132 – Scanner Holder

Construction:

Steel

Color:

Black

Dimensions / Weight:

20” long x 21.75” wide x 43” high (508 x 552 x 1092)



EC102NU1M: 58.5 lbs. (26.6 kg)

EC102NU2M: 65.5 lbs. (29.8 kg)



Power System

Typical Hardware for 6-8 Hours:

Laptop/thin client, small thermal printer & scanner

Battery Type:

Lithium Iron Phosphate

Continuous Output Power (W):

120

Surge Power:

300

Battery Bank (Wh):

230

Operating Temp (F):

50-104°


PowerCharge-Station-grayedBattery-HighRes-Web
Charging Station

Approximate Charge Time in Hours:

2.5

Operating Temp (F):

50-104°

Dimensions & Weight:

8.5" W x 10" L x 8"H / 5.5 lbs.

(216 x 254 x 203 mm) / (2.5 kg)


PowerSwap-Mini-Battery-HighRes-Web
Battery Pack:

Chemistry:

Lithium Iron Phosphate

Capacity:

230 WH

Dimensions & Weight:

6" W x 11" L x 3.375" H / 6 lbs.

(152 x 279 x 86 mm) / (2.7 kg)

ROI Calculator

Use Newcastle Systems' ROI Calculator to calculate potential savings when you eliminate unnecessary walking to and from a static computer, high-volume printer or other electronic equipment used in your work process. --- Adjust the values below to better reflect values for your company.


Downloads

Data Sheet: EC Series Compact Powered Carts
