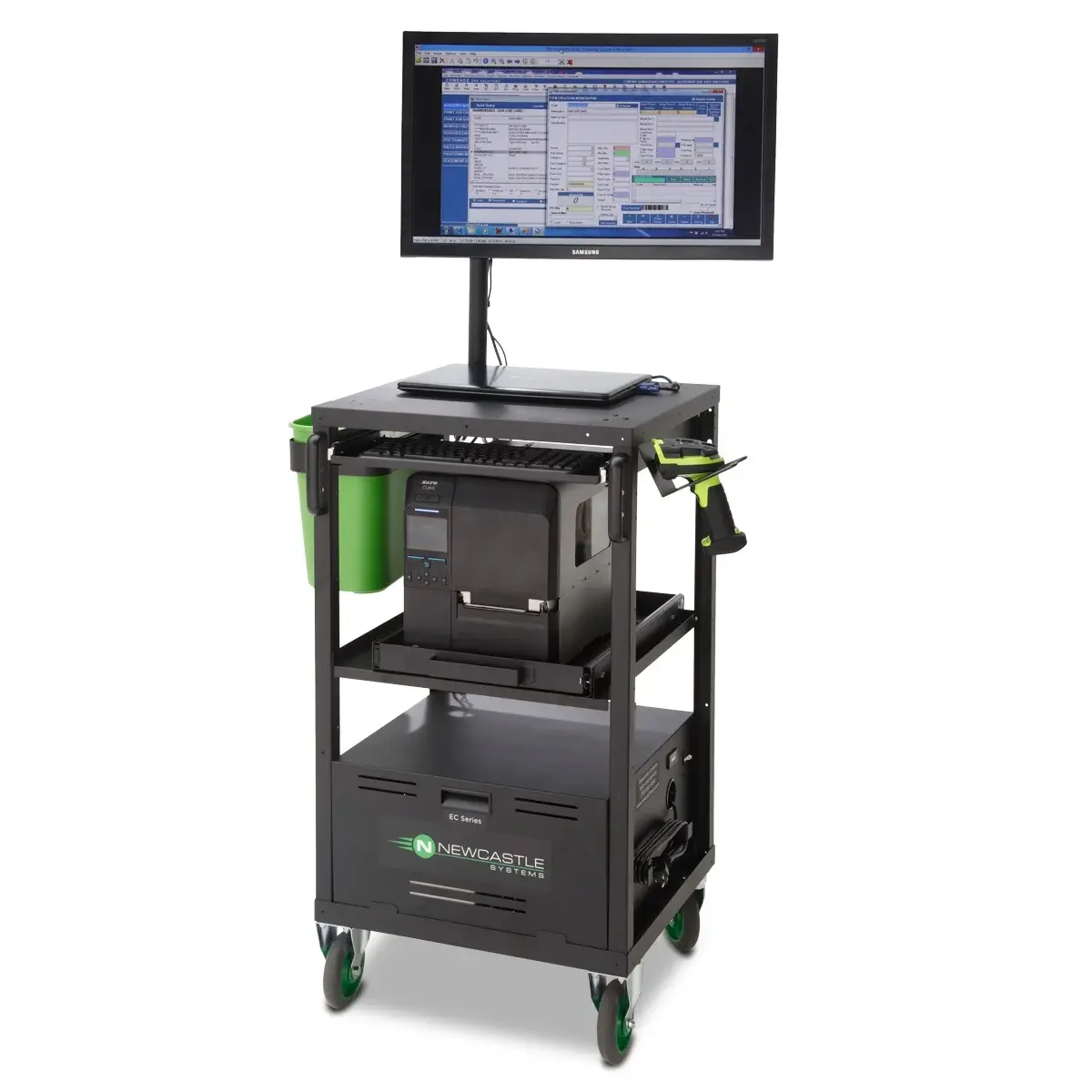

EC380 / EC380-LI
Compact powered cart, small power package w/1200 Wh SLA (EC380) or 1280 Wh Lithium Iron Phosphate (EC380-LI) battery
The entry-level EC380 & EC380-LI come standard with: (1) top shelf, locking casters, front push handles, wastebasket and holder, integrated power system, built-in power strip, and cord reel holder.
Workstation:
|
Height Adjustable: |
Optional middle shelf adjustable from 20” – 32” (508 x 813 mm) |
|
Shelf: |
Top shelf: 21.75” wide x 20” deep metal (552 x 508 mm) |
|
Shelf Capacity: |
60 lbs. (27 kg) per shelf evenly distributed |
|
Casters: |
5" x 2" (127 x 50 mm) rubber wheels, front fixed, rear locking swivel |
|
Most Popular Optional Accessories: |
B423 – Middle Shelf |
|
Construction: |
Steel |
|
Color: |
Black |
|
Dimensions: |
20” long x 21.75” wide x 43” high (508 x 552 x 1092 mm) |
|
Weight: |
EC 380: 136 lbs. (61.8 kg) / EC 380-LI: 90 lbs. (40.9 kg) |
Power System:
|
|
EC380 |
EC380-LI |
|
Typical Hardware for 8+ Hours: |
Laptop/thin client, LCD, small or mid-range thermal printer & scanner |
|
|
Battery Type: |
Sealed Lead Acid |
Lithium Iron Phosphate |
|
Continuous Output Power (W): |
450 |
|
|
Surge Power: |
900 |
|
|
Battery Bank (Wh): |
1200 |
1280 |
|
Charge Time: |
9 hours |
9 hours |
|
Operating Temp (F): |
32-95° |
50-95° |
EC380 / EC380-LI
Compact powered cart, small power package w/1200 Wh SLA (EC380) or 1280 Wh Lithium Iron Phosphate (EC380-LI) battery
Compatible with
B266
Single monitor holder, post mount. 20 lb. capacity, up to 27"
B267
Dual monitor holder, post mount, side by side. 20 lb capacity, up to 27"
B268
Dual monitor holder, post mount, stacked. 25 lb capacity, up to 27"
B407
EC/CM Series keyboard tray
B112
Laptop / tablet holder w/7" arm (adjustable 10"-17" wide) (12 x 10 x 6")
B131
Slide out thermal printer shelf, 14 w x 20"d {requires 2nd shelf for NB Series (B124), PC Series (B127 for 30" unit or B143 for 48"), and EC/CM Series (B423)}
B132
Scanner holder (6.5 x 3 x 7.5")
B269
Thin client holder. (11 lb capacity. Depth adjustable .7 - 2.8". Requires B266, B267, or B268)
B423
EC/CM Series middle shelf
B430
EC Series folding shelf extension
B433
EC Series pegboard rear panel
B148
Safety light, 36" pole
B206
Battery, 100AH sealed lead acid
B285
LiFePO4 battery, 1280 Wh (substitute for 100 ah SLA)
