At1010 & 1010L Powered Workstations for dimensioning

AT1010

AT1010L

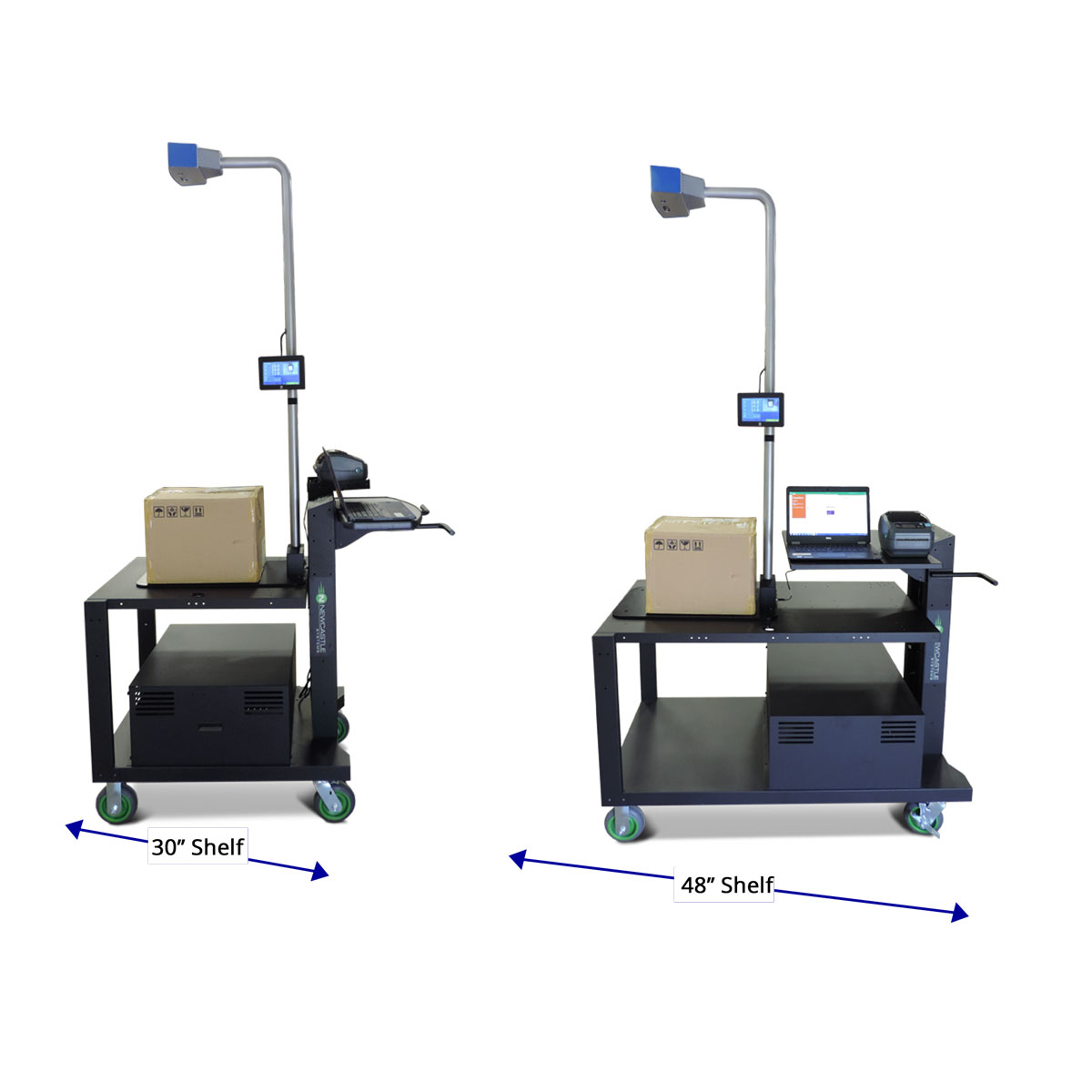

Shelves:

(1) 24” wide x 30” deep
(610 x 762 mm)

(1) standard 21" wide x 12" long (533 x 304 mm)

(1) 24” wide x 48” deep
(610 x 1219 mm)

(1) standard 21" wide x 12" long (533 x 304 mm)

Weight Capacity:

Up to 125 lbs. (56.7 kg)

Casters:

6" x 3" (152 x 76 mm) rubber wheels, front fixed, rear locking swivel

Most Popular Optional Accessories:

B266 – LCD Holder and Post
B132 – Scanner Holder

B266 – LCD Holder and Post
B132 – Scanner Holder

Construction:

Steel

Color:

Black

Dimensions:

26” W x 49” L x 33” H
(96.5"/2,451 mm high with QubeVu DimStation)
(660 x 1,245 x 838 mm)

26” W x 56.5” L x 33” H
(96.5"/2,451 mm high with QubeVu DimStation)
(660 x 1,435 x 838 mm)

Weight:

220 lbs. (100 kg)

240 lbs. (109 kg)

Typical Hardware for 8+ Hours:

Laptop/thin client, LCD, QubeVu DimStation, industrial thermal printer, & scanner

Battery Type:

Sealed Lead Acid

Continuous Output Power (W):

1000

Surge Power:

2000

Battery Bank (Wh):

1200

Charge Time (Hrs.)

5

Operating Temp (F):

32-104°
