PC536/536-LI & PC556/556-LI Mobile Powered Workstations

Scroll to zoom images +/-.

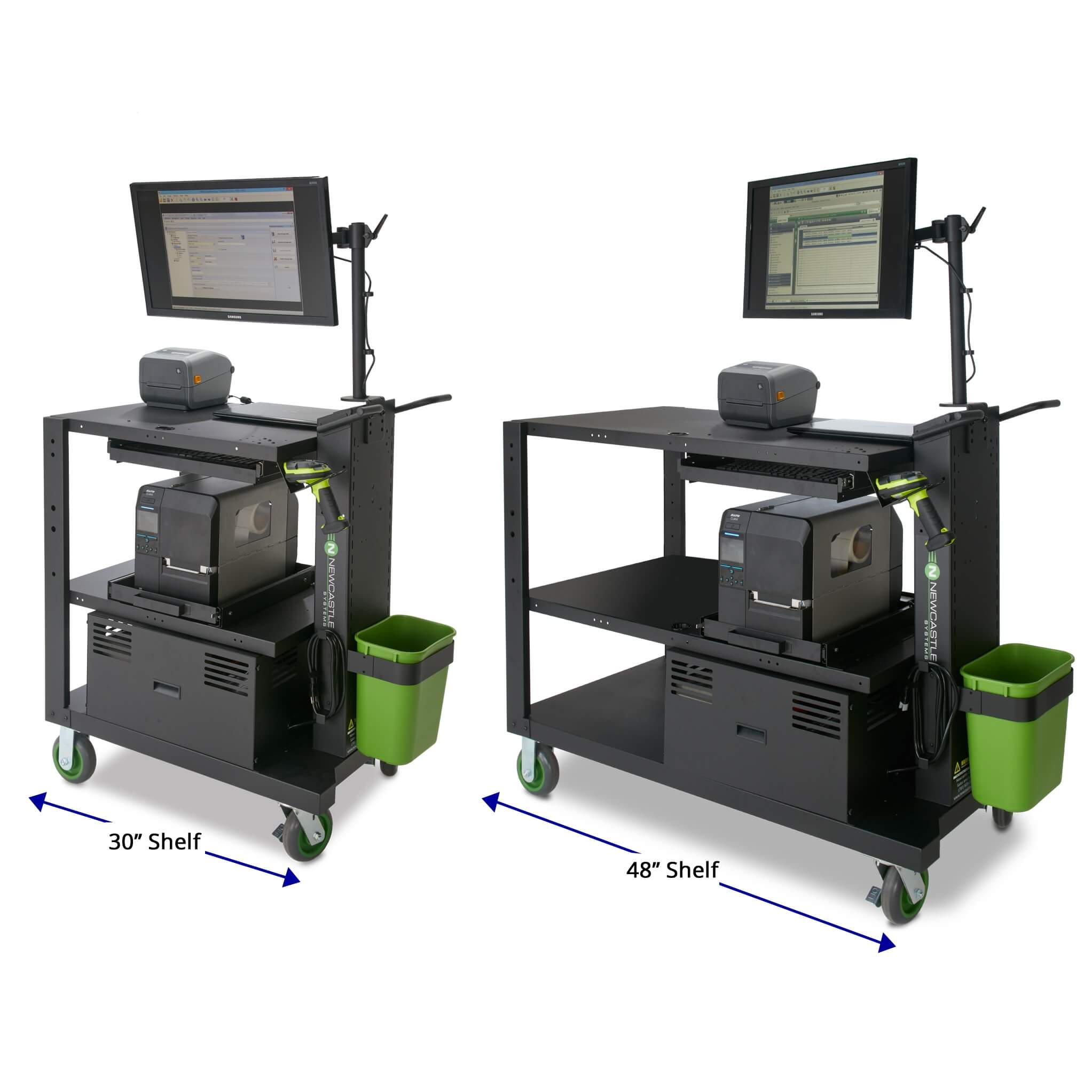

PC536/536-LI & PC556/556-LI Model Powered Workstations

Each comes standard with: (1) adjustable shelf, locking casters, push handles, wastebasket and holder, integrated power system (SLA or LiFePO4), built-in power strip, and cord reel holder.

Data Sheet: PC Series Standard Powered Carts

Data Sheet: PC Series Fixed Lithium Powered Carts



Workstation:



PC536 / PC536-LI (30" Shelf)

PC556 / PC556-LI (48" Shelf)

Height Adjustable:

Shelf adjustable from 20” – 40” (508 x 1016 mm)

Shelf:

24” wide x 30” deep
(610 x 762 mm)

24” wide x 48” deep
(610 x 1219 mm)

Shelf Capacity:

100 lbs. (45 kg) per shelf evenly distributed

Casters:

6" x 3" (152 x 76 mm) rubber wheels, front fixed, rear locking swivel

Most Popular Optional Accessories:

B127 – Middle Shelf
B107 – Keyboard & Mouse Tray

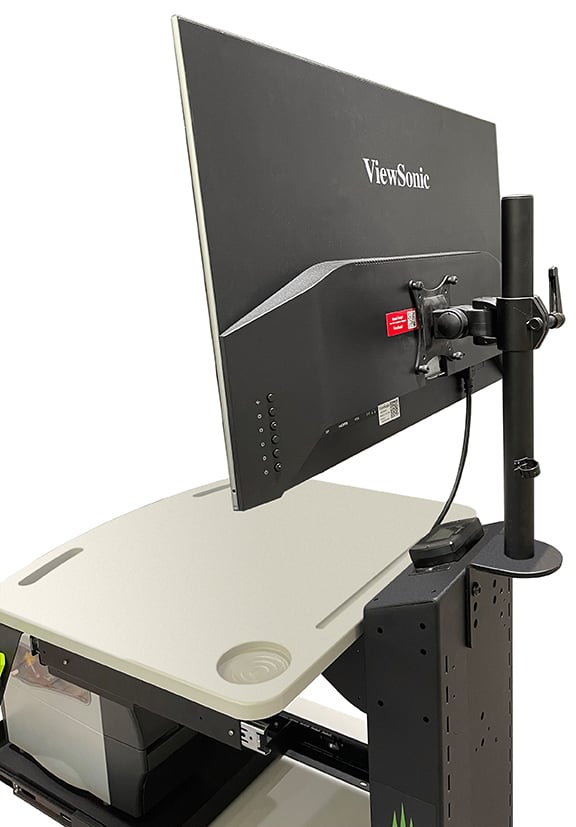

B266 – LCD Holder and Post
B132 – Scanner Holder

B143 – Middle Shelf
B107 – Keyboard  & Mouse Tray
B266 – LCD Holder and Post
B132 – Scanner Holder

Construction:

Steel

Color:

Black

Dimensions:

35.5” long x 26” wide x 43” high

(901 x 610 x 1092 mm)

54” long x 26” wide x 43” high

(1371 x 660 x 1092 mm)

Weight:

318 lbs. (145 kg) SLA version

210 lbs (95 kg) LI version

343 lbs. (156 kg) SLA version

235 lbs (107 kg) LI version


Power System:



PC536 / PC556 (SLA)

PC536-LI / PC556-LI (LiFePO4)

Typical Hardware for 8+ Hours:

Desktop computer, LCD, & laser printer

Battery Type:

Sealed Lead Acid

Lithium Iron Phosphate

Continuous Output Power (W):

2000 / Pure sine

Surge Power:

4000

Battery Bank(Wh):

2400

1600

Charge Time:

6 hrs.

4 hrs.

Operating Temp (F):

-4-104°

 50-95°
