PC542/542-LI & PC562/562-LI Mobile Powered Workstations

Scroll to zoom images +/-.

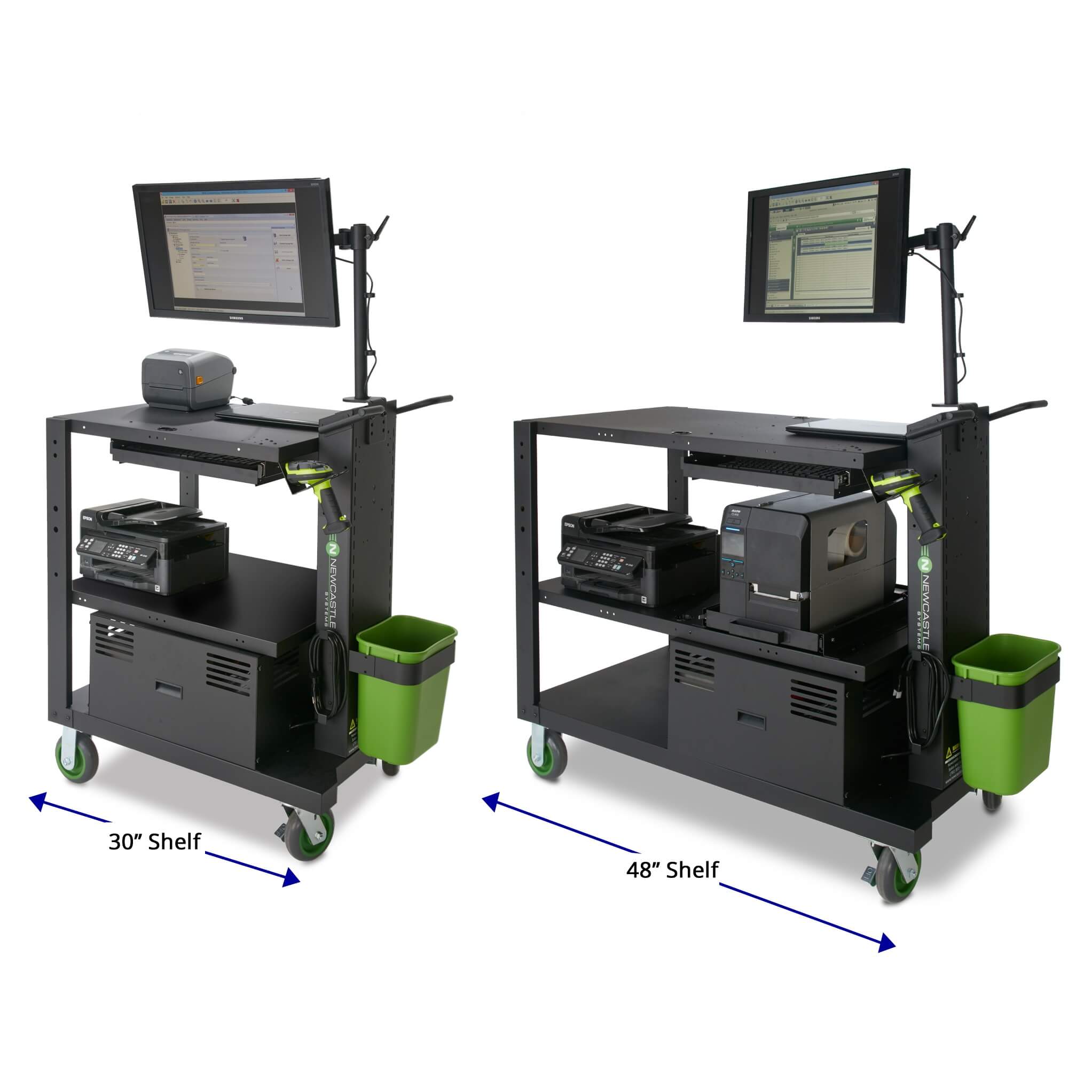

PC542/542-LI & PC562/562-LI Model Powered Workstations

Each comes standard with: (1) adjustable shelf, locking casters, push handles, wastebasket and holder, integrated power system (SLA or LiFePO4), built-in power strip, and cord reel holder.

Workstation:



PC542 / PC542-LI (30" Shelf)

PC562 / PC562-LI (48" Shelf)

Height Adjustable:

Shelf adjustable from 20” – 40” (508 x 1016 mm)

Shelf:

24” wide x 30” deep
(610 x 762 mm)

24” wide x 48” deep
(610 x 1219 mm)

Shelf Capacity:

100 lbs. (45 kg) per shelf evenly distributed

Casters:

6" x 3" (152 x 76 mm) rubber wheels, front fixed, rear locking swivel

Most Popular Optional Accessories:

B127 – Middle Shelf
B131PC - Slide-Out Printer Tray (req B127)
B107 – Keyboard & Mouse Tray
B266 – LCD Holder and Post
B132 – Scanner Holder

B143 – Middle Shelf
B131PC - Slide-Out Printer Tray (req B143)
B107 – Keyboard  & Mouse Tray
B266 – LCD Holder and Post
B132 – Scanner Holder

Construction:

Steel

Color:

Black

Dimensions:

35.5” long x 26” wide x 43” high

(901 x 610 x 1092 mm)

54” long x 26” wide x 43” high

(1371 x 660 x 1092 mm)

Weight:

392 lbs. (178 kg) SLA version

235 lbs. (107 kg) LI version

417 lbs. (190 kg) SLA version

260 lbs. (118 kg) LI version


Power System:



PC542 / PC562 (SLA)

PC542-LI / PC562-LI (LiFePO4)

Typical Hardware for 8+ Hours:

Desktop computer, LCD, (1-2) industrial thermal printers, laser printer & scanner

Battery Type:

Sealed Lead Acid

Lithium Iron Phosphate

Continuous Output Power (W):

2000 / Pure sine

Surge Power:

4000

Battery Bank(Wh):

3600

2560

Charge Time:

8 hrs.

6 hrs.

Operating Temp (F):

-4-104°

 50-95°



Downloads

  Data Sheet : PC Series-Standard-2020
  Data Sheet : PC Series-Fixed-Lithium-2020
