Innovative PowerSwap Nucleus Lithium Power System

PowerSwap Nucleus® Lithium Power System





The FIRST lithium portable power pack designed for industrial environments

PowerSwap Nucleus PowerSwap Nucleus Lithium Power System by Newcastle Systems



The new PowerSwap Nucleus® Lithium Power System from Newcastle Systems raises the bar for workplace mobility.

Download Datasheet

Why Nucleus?

A nucleus is, by definition, the central and most important part of an object, movement, or group, forming the basis for its activity and growth. This small, swappable, durable, portable battery pack is central to a mobile workstation system, providing the power for productivity

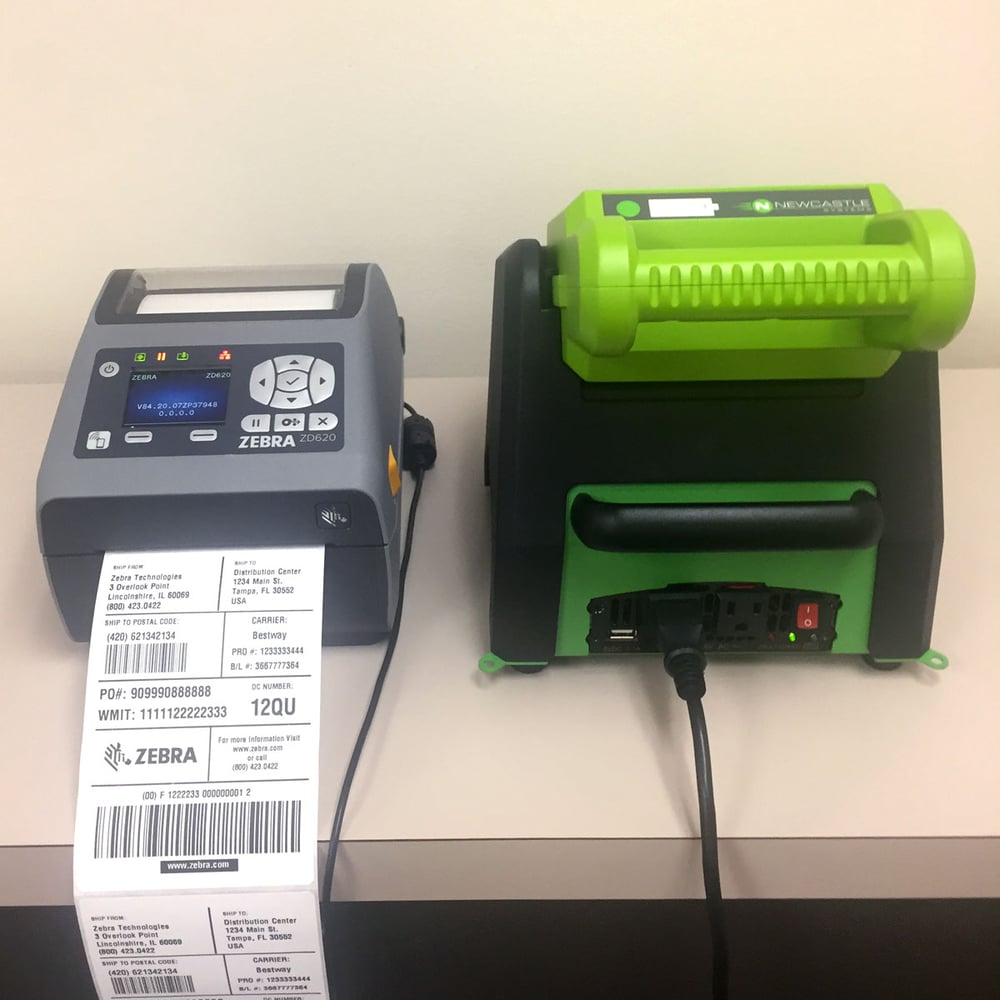

The PowerSwap Nucleus® enables productivity to happen by providing power to devices such as a laptop, tablet, barcode or inkjet printer, scanner and more for 8+ hours at a time.

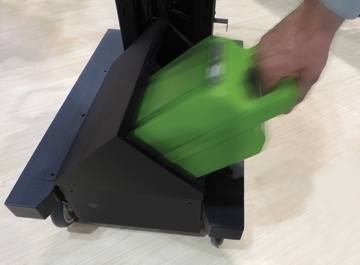

Once the battery charge is depleted, simply swap it with a fully charged one in a matter of seconds enabling a 24/7 operation.  No tools or heavy lifting required.

Outstanding Benefits

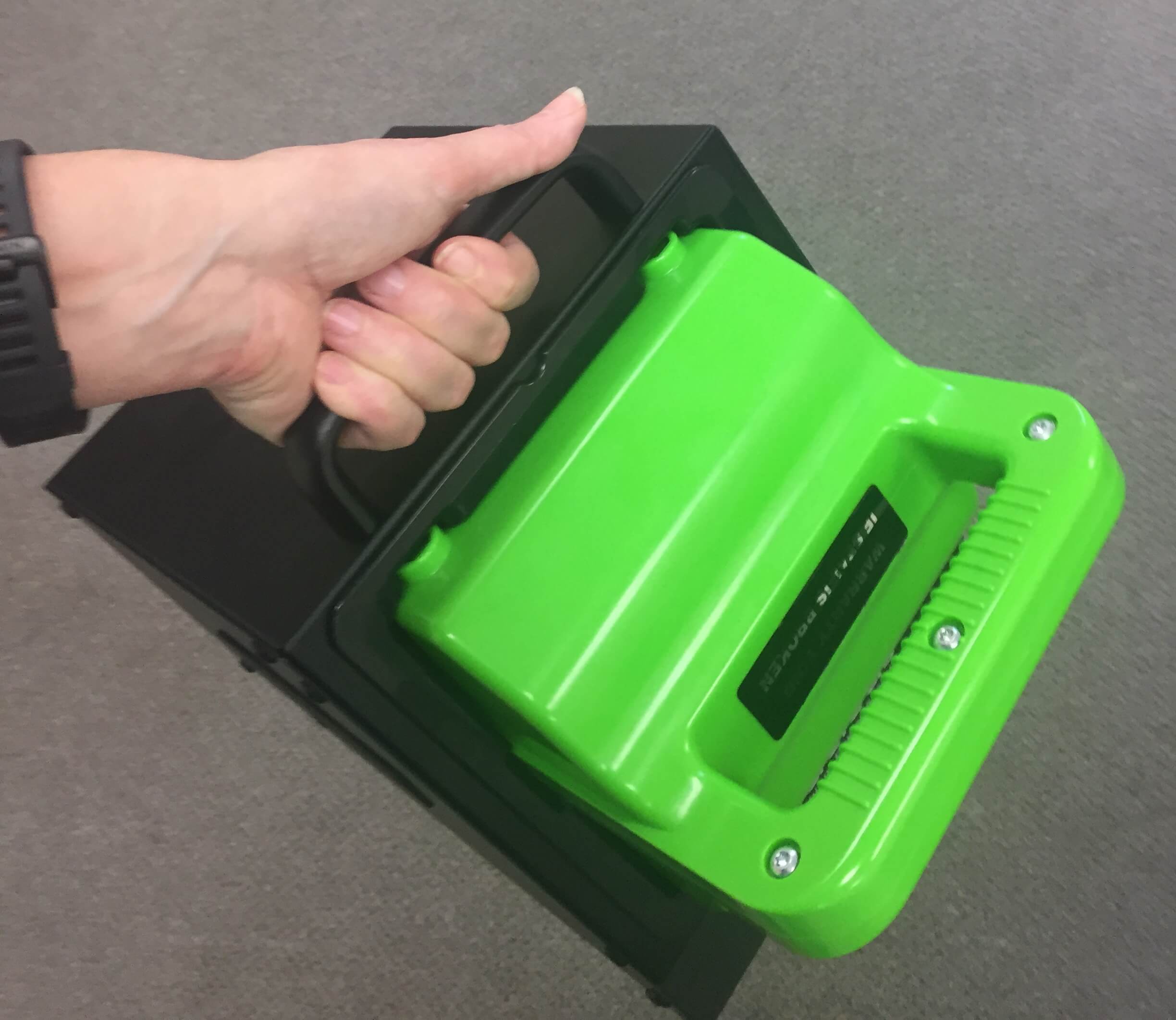

Lightweight:  Only 11 lbs per battery

Error-Proof:  Never lose a full day of production due to someone forgetting to charge the cart.

Fully Swappable:  In a matter of seconds so you'll never run out of battery power

Durable:  5-7 year battery life or 3,000 cycles - making it a great investment

Hardware-Friendly:  Quiet, seamless AC power (no need to source for DC specific hardware)

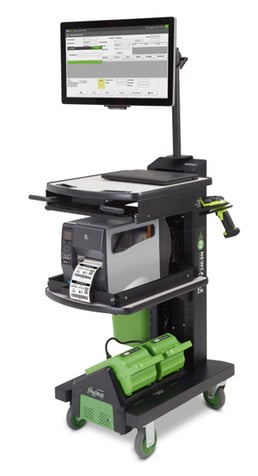

 NB-Slim-NU-1-web

 **Lithium Safety Concerns**: The Newcastle battery employs Lithium-Iron Phosphate technology, which is significantly more stable than standard lithium-ion or lithium-polymer solutions. Unlike these chemistries, Lithium-Iron Phosphate batteries are not subject to potentially dangerous ignition events when subjected to over-heating or mechanical abuse.

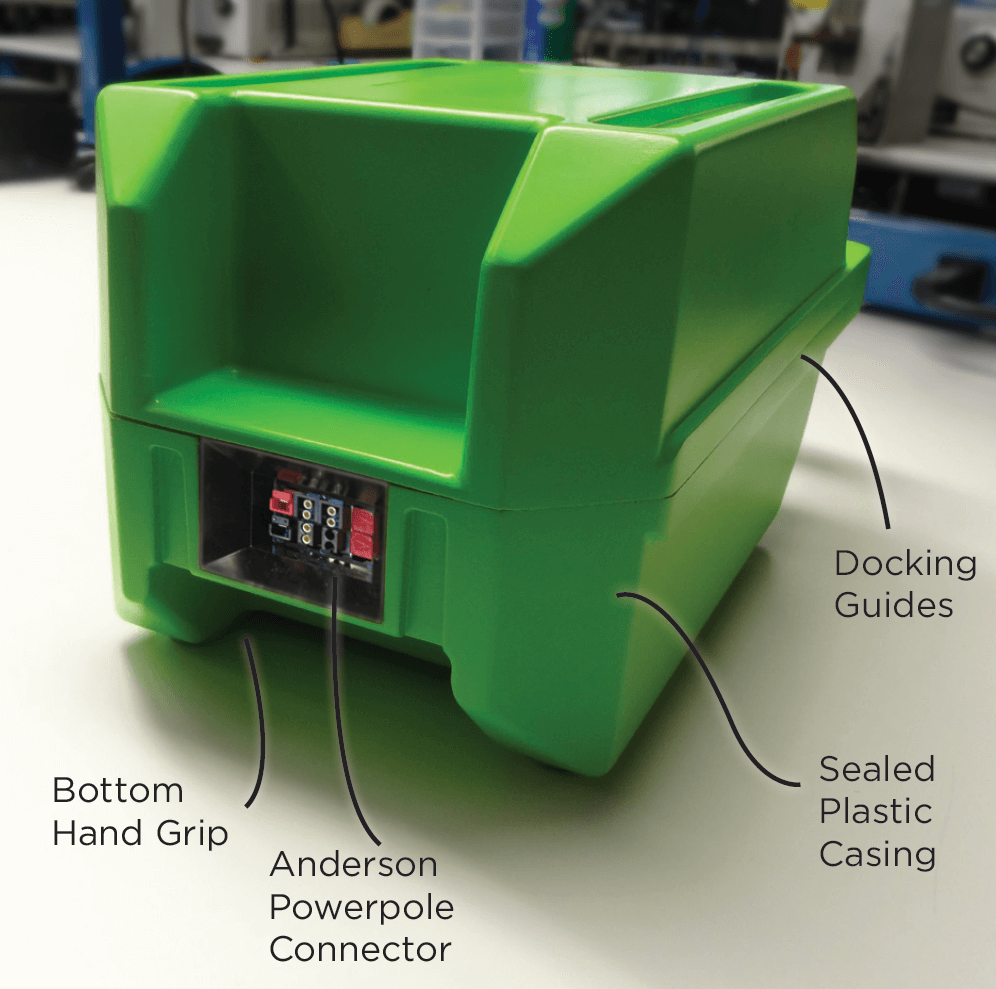

Nucleus Diagram

At 460 watt hours per battery pack, the PowerSwap Nucleus® Lithium Power System is the most powerful mobile workstation battery of its size. Its AC output will power over 80% of standard workstation configurations for a full shift with only 1 or 2 batteries!

Sealed, tough plastic casing means your power source can survive in the toughest industrial conditions.



Technical Specifications

The Complete System Consists of:

1 to 4 battery packs

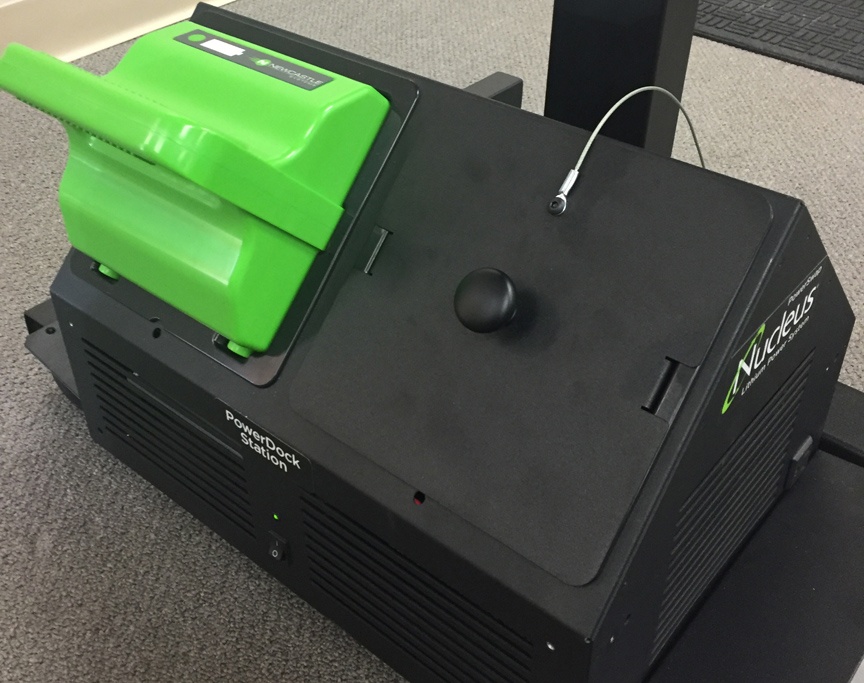

Power docking station
Battery charging station

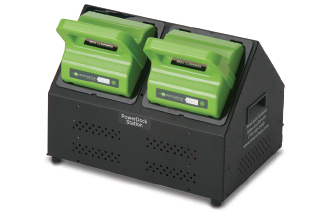

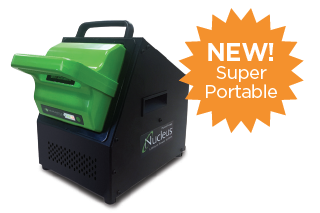

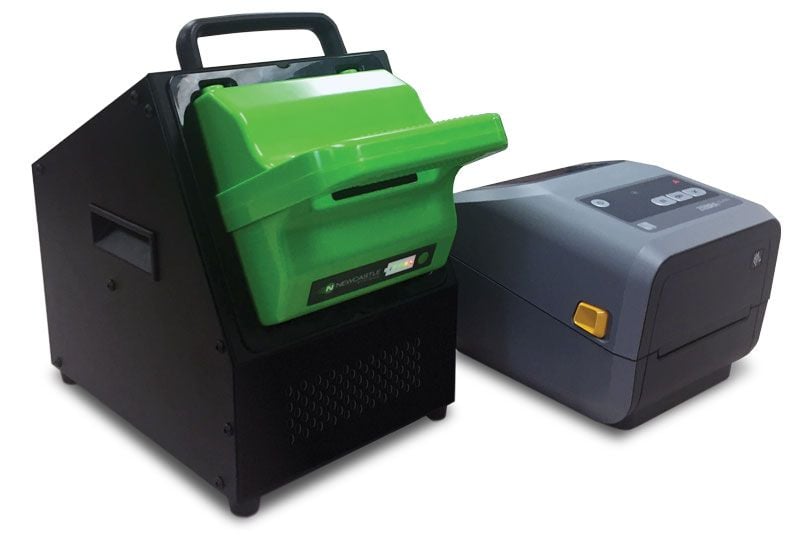

PowerDock Solo (PWD-1) PowerDock Dual (PWD-2)
Power System Components: PowerDock Solo (PWD-1) PowerDock Dual (PWD-2)
Typical Hardware
& Run Time:
Laptop, small barcode printer & scanner for 8+ hours Laptop, industrial barcode or inkjet printer & scanner for 8-12+ hours (with 2 batteries)
Compatibility: Currently available as stand-alone power system  Integrates with NB, PC, Apex, Atlas Series Mobile Workstations
Continuous Output Power: 120 watts 120 (1 battery) / 240 watts (2 batteries)
Surge Power: 550 watts 550 / 825 watts
Battery Bank: 460 Wh 460 / 920 Wh
Operating Temp. Range: 50 - 104 F
Hot Swappability: No Yes
PowerDock Dimensions & Weight: 8.4" W x 11" L x 13.25" H / 12 lbs.
(213 x 279 x 337 mm) / (5.5 kg)
16" W x 11.63" L x 11.5" H / 20 lbs.
(406 x 295 x 292 mm) / (9 kg)

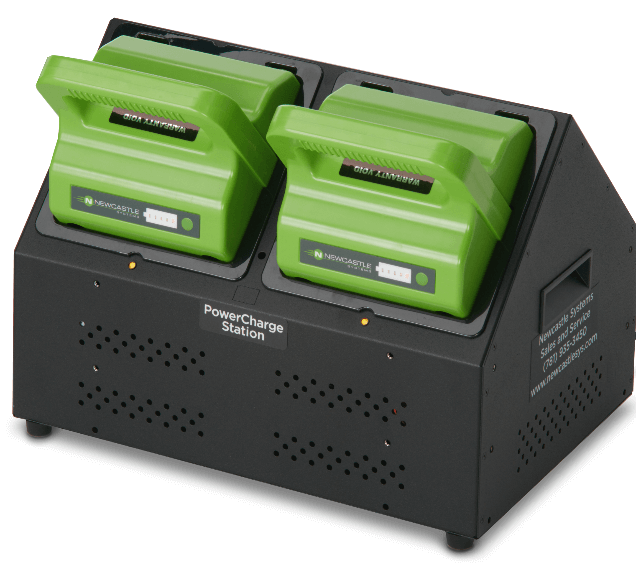

  PowerCharge Station
Charging System Components: PowerCharge Dual (PWC-2)
Approximate Charge Time: 8 Hours
(4 Hours with optional FastCharge)
Operating Temp. Range: 50 - 104 F
PowerCharge Dimensions & Weight: 16" W x 11.625" L x 11.5" H / 20 lbs.
(406 x 295 x 292 mm) / (9 kg)
PSNU3.6 Battery Pack: Lithium Iron Phosphate; Supports up to 460 Wh
Battery Dimensions & Weight: 6.5" W x 12.82" L x 6.4" H / 11 lbs.
(165 x 326 x 163 mm) / (5 kg)



For more information, contact your Account Manager or call us directly at 781-935-3450.
