qc207nu Mobile Powered Workstation

Scroll to zoom images +/-.

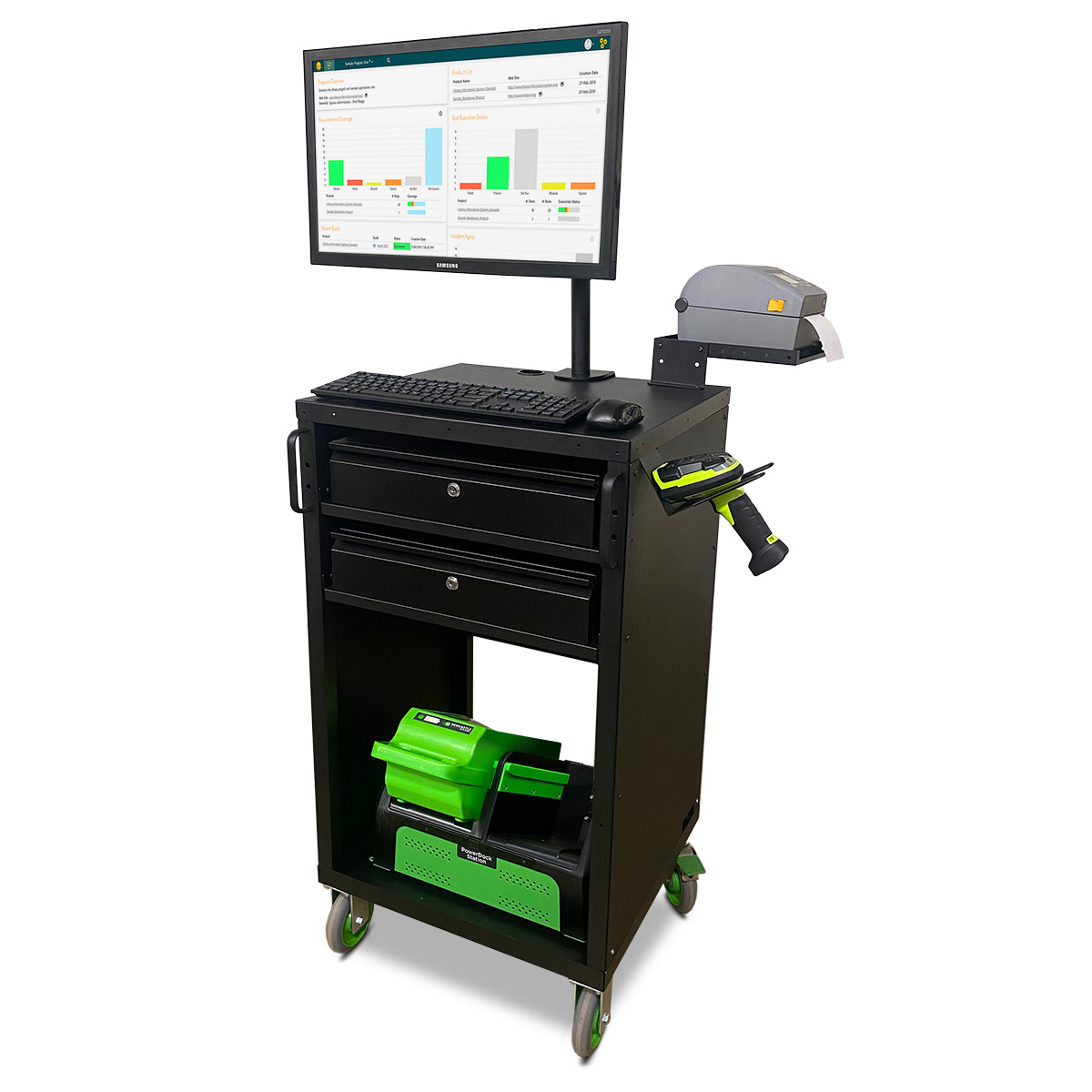

QC207NU Mobile Powered Workstation

The QC207NU comes standard with: (1) lockable drawer, (1) document holder, (1) small side storage pocket, waste basket & holder, locking casters, integrated docking station and power strip.

Swappable battery packs (PSNU3.6) and battery charging station (PWC2 or PWC2-FC) are required and ordered separately based on your specific power & charging requirements.

Workstation:

Total Shelf Capacity:

Up to 70 lbs (31.8 kg) / 29” W x 22” D

Casters:

5" x 2" (127 x 50 mm) rubber wheels, front swivel, rear locking swivel

Most Popular Optional Accessories:

B454– Keyboard Tray
B132 - Scanner Holder
B266 – LCD Holder and Post
B269 – Thin Client Holder
B451 – Printer Shelf
B450– Additional Lockable Drawer
B452– Notebook/Paper Holder

Cart Material:

HDPE - High density polyethylene

Color:

Black

Dimensions:

29” W x 22” D x 42” H (737 x 559 x 1067 mm)

Weight:

125 lbs (56.8 kg)


Integrated Power System:

Typical Hardware for 8+ Hours:

Laptop/thin client, LCD, and small barcode printer (1 battery)
Laptop/thin client, LCD, and mid-range barcode printer (2 batteries)

Battery Type:

Lithium Iron Phosphate  (LiFePO4)

Continuous Output Power (W):

120 (1 battery) / 240 (2 batteries)

Surge Power (W):

550 / 825

Battery Bank (Wh):

460  / 920

Operating Temp (F):

50-104°


Swappable Battery Pack:
Nucleus_Battery_Alone_WebClick photo to enlarge.

Part Number:

PSNU3.6
Supports up to 460 WH per battery

Battery Type:

Lithium Iron Phosphate  (LiFePO4)

Dimensions:

6.5" W x 12.82" L x 6.4" H (165 x 326 x 163 mm)

Weight:

ll lbs. (5 kg)


Battery Charging Stations:
PowerDock Click photo to enlarge.

Part Numbers:

PWC2 / PWC2-FC

Charge Time (Hrs.):

8  / 4

Operating Temp (F):

50-104°

Dimensions:

16"W x 11.6"L x 11.5"H (406 x 295 x 292 mm)

Weight:

20 lbs. (9 kg)
