ATnu and ATNU-L Mobile dimensioning station

Scroll to zoom images +/-.

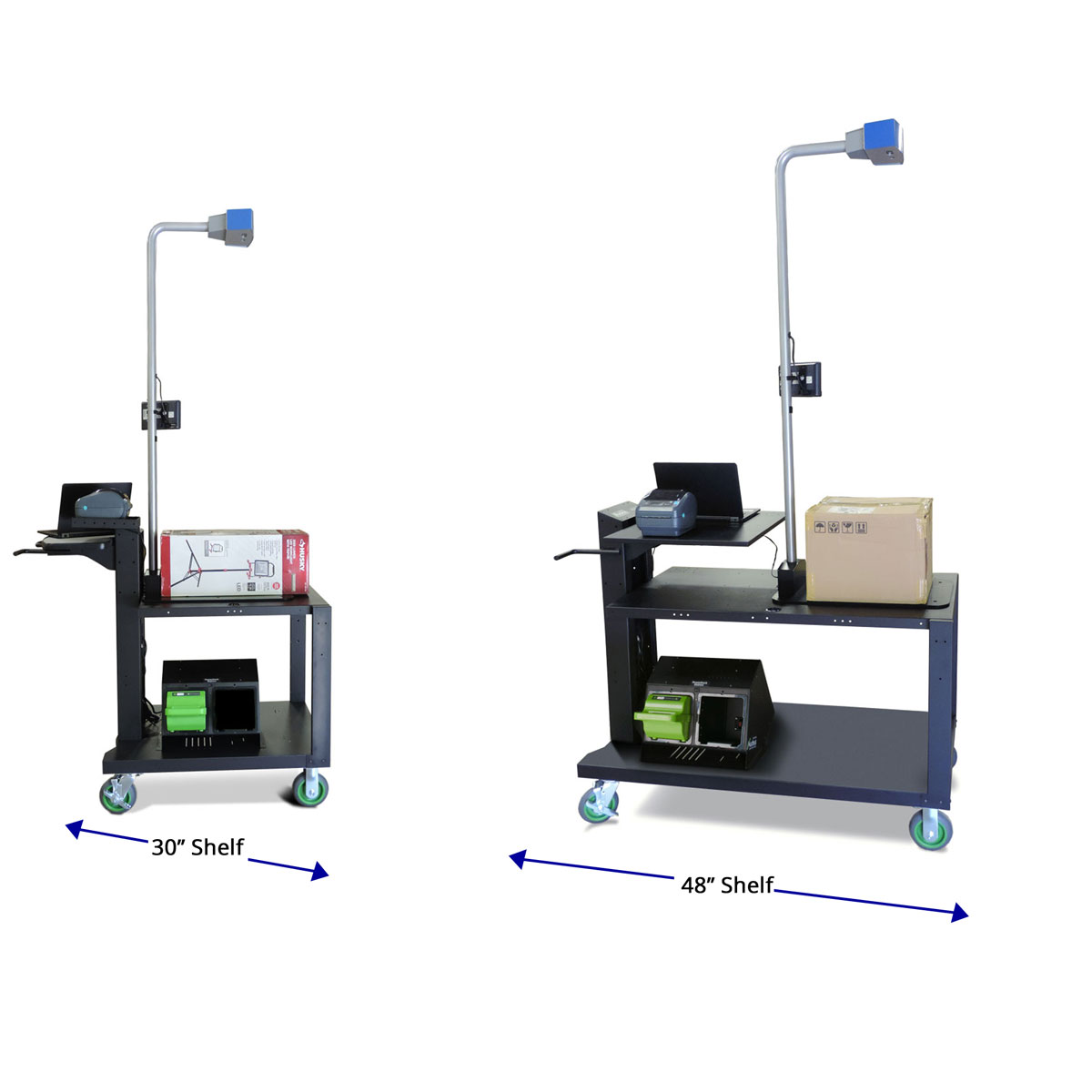

ATNU & ATNU-L Mobile Dimensioning Station

Each unit comes standard with: (2) shelves, locking casters, push handles, wastebasket and holder, integrated dual-bay docking station.

Swappable battery packs (PSNU3.6) and battery charging station (PWC2 or PWC2-FC) are required and ordered separately based on your specific power & charging requirements.

Workstation:


ATNU

ATNU-L

Shelves:

(1) 24” wide x 30” deep
(610 x 762 mm)

(1) standard 21" wide x 12" long (533 x 304 mm)

(1) 24” wide x 48” deep
(610 x 1219 mm)

(1) standard 21" wide x 12" long (533 x 304 mm)

Weight Capacity:

Up to 125 lbs. (56.7 kg)

Casters:

6" x 3" (127 x 50 mm) rubber wheels, front fixed, rear locking swivel

Most Popular Optional Accessories:

B266 – LCD Holder and Post
B132 – Scanner Holder

B266 – LCD Holder and Post
B132 – Scanner Holder

Construction:

Steel

Color:

Black

Dimensions:

35.5” long x 26” wide x 43” high

(901 x 660 x 1092 mm)

54” long x 26” wide x 43” high

(1371 x 660 x 1092 mm)

Weight:

210 lbs. (95 kg)

240 lbs. (109 kg)


Integrated Power System:

Typical Hardware for 8+ Hours:

Laptop/thin client, LCD, QubeVue Dimstation  (1 battery)
Laptop/thin client, LCD, QubeVue Dimstation,  mid-range barcode printer (2 batteries)

Battery Type:

Lithium Iron Phosphate  (LiFePO4)

Continuous Output Power (W):

120 (1 battery) / 240 (2 batteries)

Surge Power (W):

550 / 825

Battery Bank (Wh):

460  / 920

Operating Temp (F):

50-104°


Swappable Battery Pack:
Nucleus_Battery_Alone_WebClick photo to enlarge.

Part Number:

PSNU3.6
Supports up to 460 WH per battery

Battery Type:

Lithium Iron Phosphate  (LiFePO4)

Dimensions:

6.5" W x 12.82" L x 6.4" H (165 x 326 x 163 mm)

Weight:

ll lbs. (5 kg)


Battery Charging Stations:
PowerDock Click photo to enlarge.

Part Numbers:

PWC2 / PWC2-FC

Charge Time (Hrs.):

8  / 4

Operating Temp (F):

50-104°

Dimensions:

16"W x 11.6"L x 11.5"H (406 x 295 x 292 mm)

Weight:

20 lbs. (9 kg)
