Each unit comes standard with: (1) adjustable shelf, locking casters, front push handles, wastebasket and holder, built-in
Swappable battery packs (PSNU3.6) and battery charging station (PWC2 or PWC2-FC) are ordered separately based on your specific power & charging requirements.

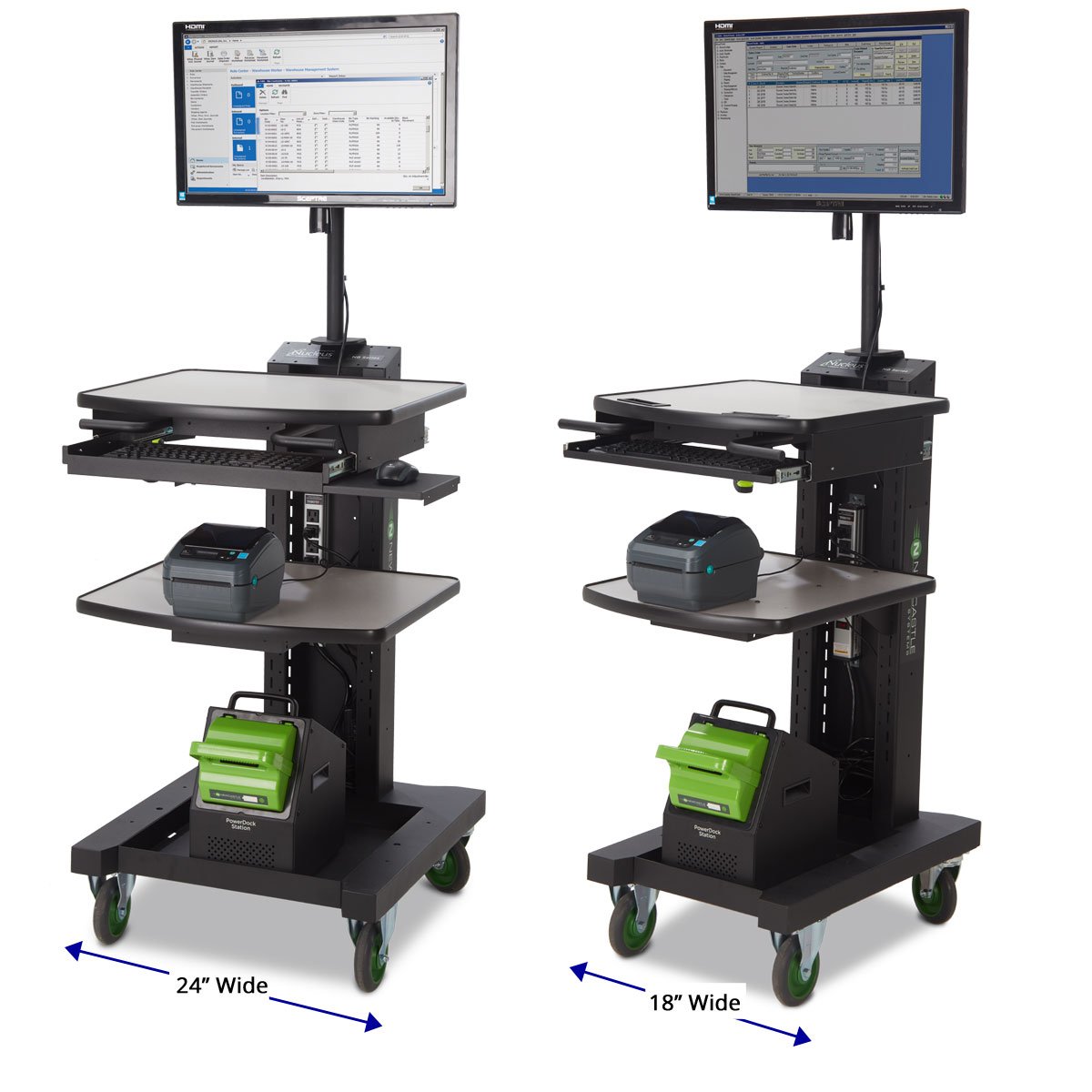

Workstation:
|
NB104NU |
NB104NU-S |
|
|
Height Adjustable: |
Shelf adjustable from 20” – 40” (508 x 1016 mm) |
|
|
Shelf: |
24” wide x 22” deep laminated |
18” wide x 22” deep laminated with hand bevels (457 x 599 mm) |
|
Shelf Capacity: |
75 lbs. (34 kg) per shelf evenly distributed |
|
|
Casters: |
5" x 2" (127 x 50 mm) rubber wheels, front fixed, rear locking swivel |
|
|
Most Popular Optional Accessories: |
B124 – Middle Shelf |
B124-S – Middle Shelf |
|
Construction: |
Steel |
|
|
Color: |
Black |
|
|
Dimensions: |
26” long x 24” wide x 43” high (660 x 610 x 1092 mm) |
26” long x 18” wide x 43” high (660 x 457 x 1092 mm) |
|
Weight: |
96 lbs. (43.6 kg) |
102 lbs. (46.4 kg) |
Integrated Power System:
|
Typical Hardware for 8+ Hours: |
Laptop/thin client, LCD & small thermal printer |
|
Battery Type: |
Lithium Iron Phosphate (LiFePO4) |
|
Continuous Output Power (W): |
120 (1 battery) |
|
Surge Power (W): |
550 |
|
Battery Bank (Wh): |
460 |
|
Operating Temp (F): |
50-104° |
Swappable Battery Pack:
Click photo to enlarge.
|
Part Number: |
PSNU3.6 |
|
Battery Type: |
Lithium Iron Phosphate (LiFePO4) |
|
Dimensions: |
6.5" W x 12.82" L x 6.4" H (165 x 326 x 163 mm) |
|
Weight: |
l2 lbs. (5.5 kg) |

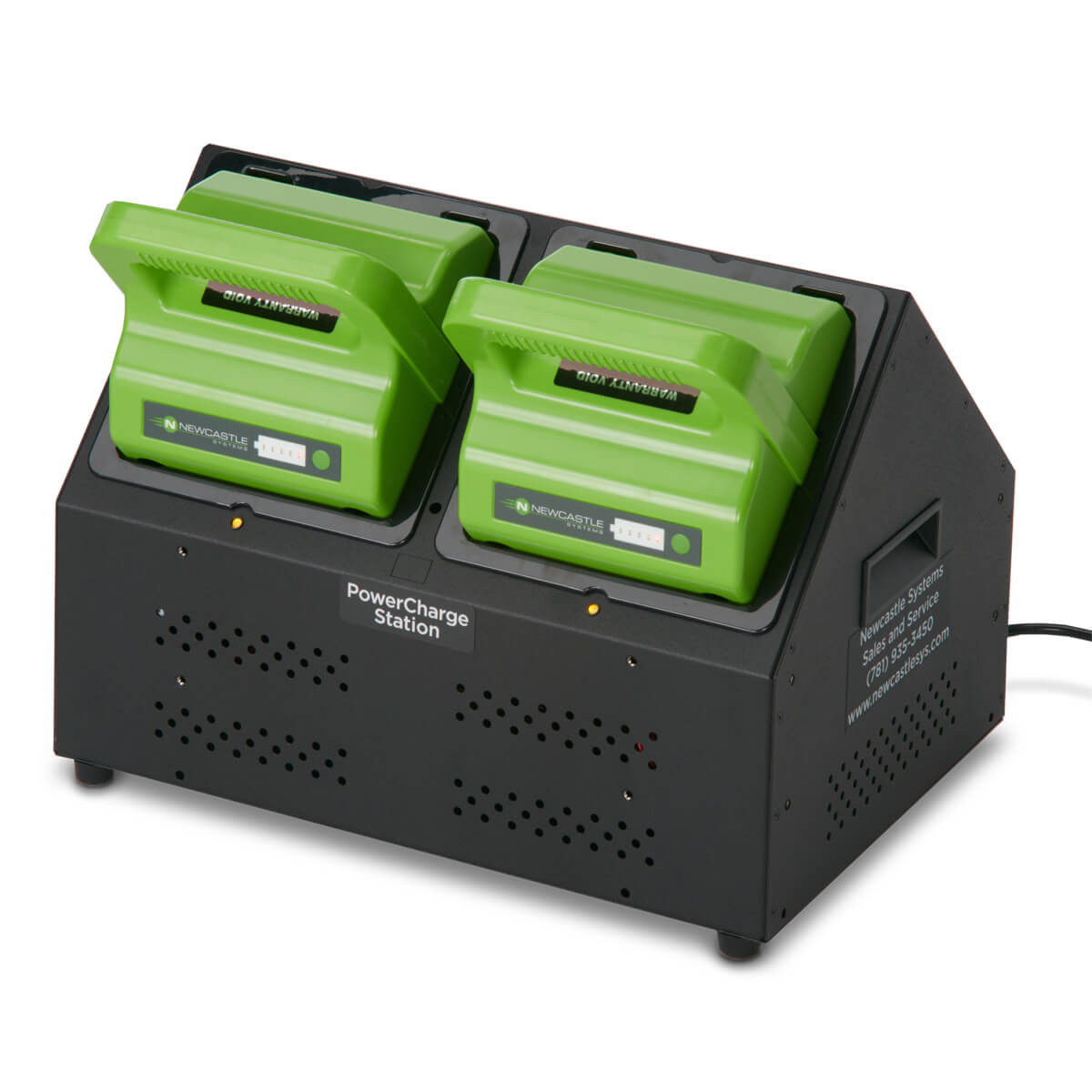

Battery Charging Stations:
Click photo to enlarge.
|
Part Numbers: |
PWC2 |
|
Charge Time (Hrs.): |
4 - 5 |
|
Operating Temp (F): |
50-104° |
|
Dimensions: |
16"W x 11.6"L x 11.5"H (406 x 295 x 292 mm) |
|
Weight: |
14.5 lbs. (6.6 kg) |
