NB430/430-LI & NB430-S/430-S-LI Mobile Powered Workstations

Scroll to zoom images +/-.

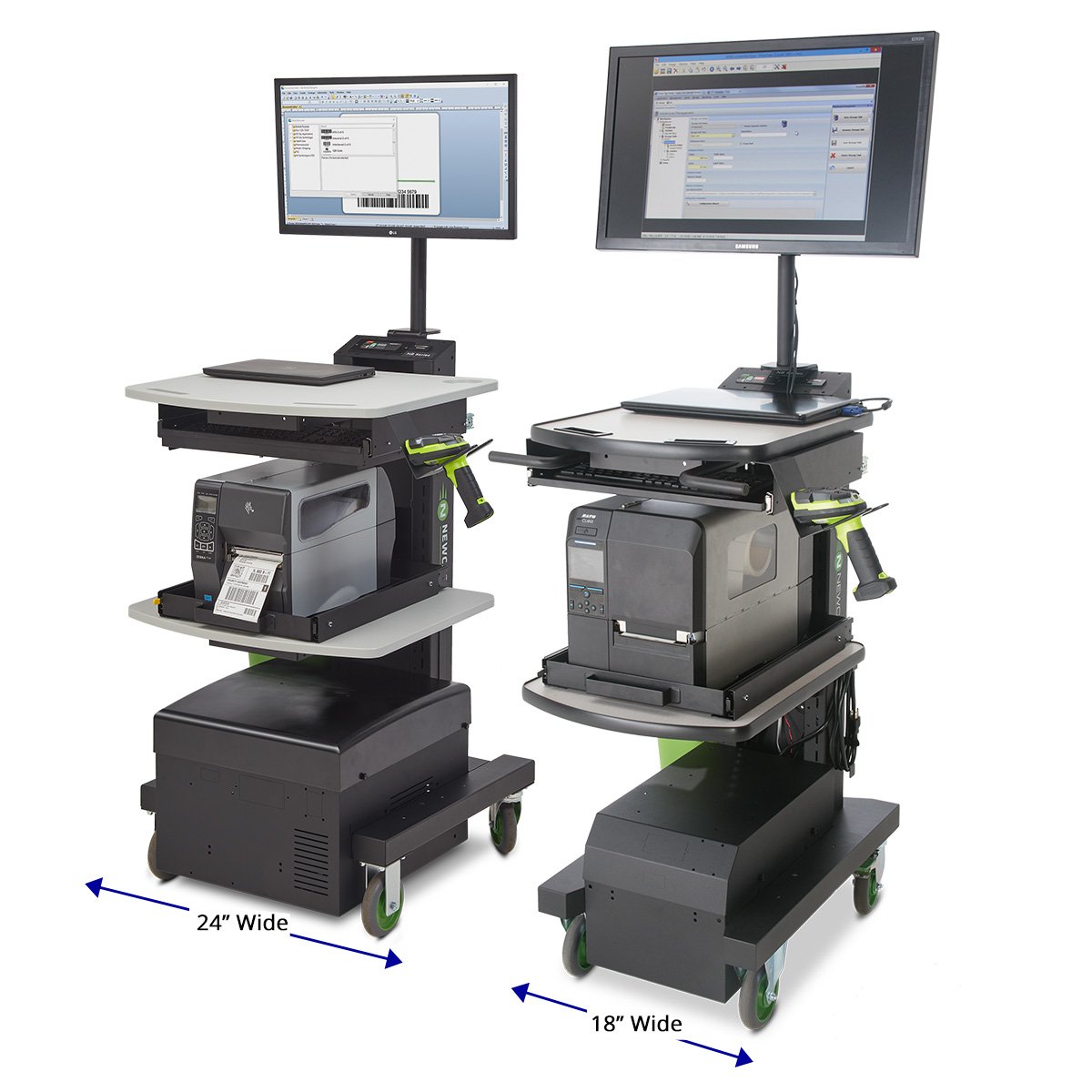

NB430 / 430-LI & NB430-S / 430-S-LI Model Powered Workstations

Each comes standard with: (1) adjustable shelf, locking casters, front push handles, waste basket and holder, integrated power system (SLA and LiFePO4), built-in power strip and cord reel holder.

Data Sheet: NB Series Mid-Range Standard Powered Cart

Data Sheet: NB Series Fixed Lithium Powered Carts



Workstation:



NB430 / NB430-LI

NB430-S / NB430-S-LI

Height Adjustable:

Shelf adjustable from 20” – 40” (508 x 1016 mm)

Shelf:

24” wide x 22” deep laminated
(610 x 599 mm)

18” wide x 22” deep laminated with hand bevels (457 x 599 mm)

Shelf Capacity:

75 lbs. (34 kg) per shelf evenly distributed

Casters:

5" x 2" (127 x 50 mm) rubber wheels, front fixed, rear locking swivel

Most Popular Optional Accessories:

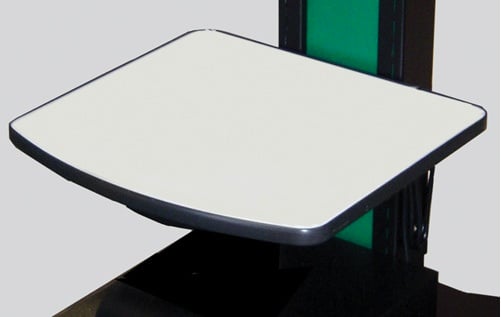

B124 – Middle Shelf

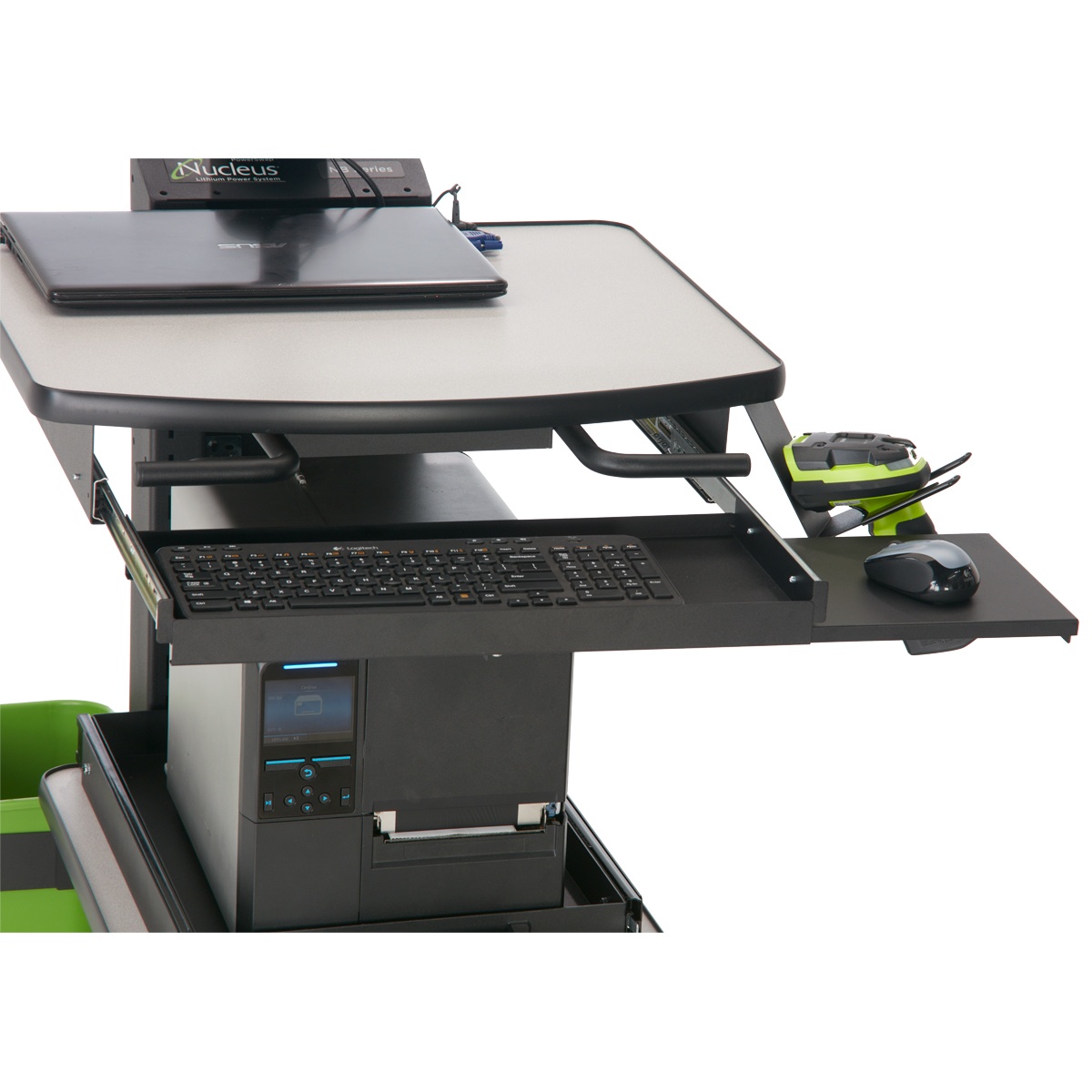

B107 – Keyboard & Mouse Tray

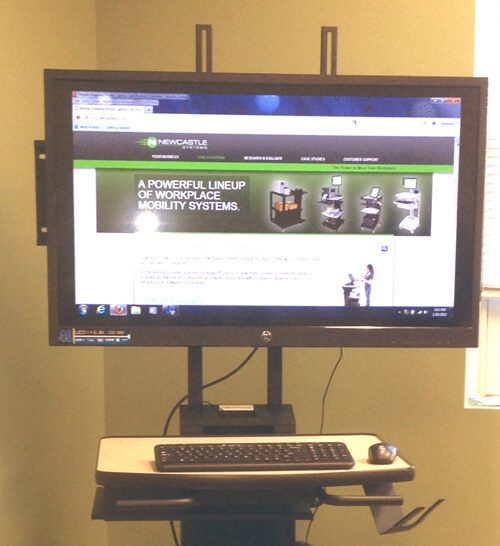

B266 – LCD Holder and Post

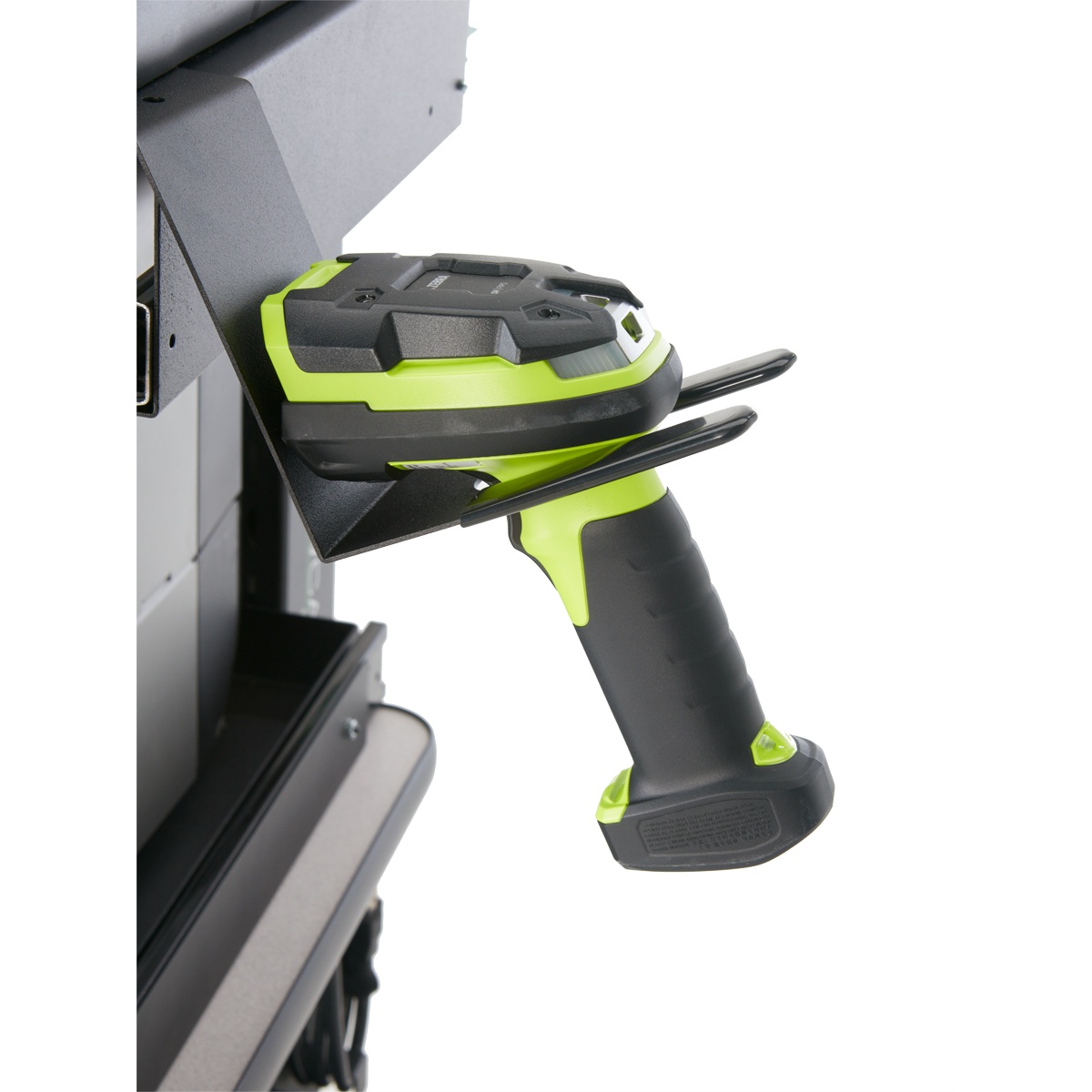

B132 – Scanner Holder

B124-S – Middle Shelf
B108 – Keyboard Tray
B266 – LCD Holder and Post
B132 – Scanner Holder

Construction:

Steel

Color:

Black

Dimensions:

26” long x 24” wide x 43” high

(660 x 610 x 1092 mm)

26” long x 18” wide x 43” high

(660 x 457 x 1092 mm)

Weight:

180 lbs. (81.8 kg) SLA version

135 lbs. (61.4 kg) LI version

171 lbs. (78 kg) SLA version

125 lbs. (57 kg) LI version


Power System:



NB430 / NB430-S (SLA)

NB430-LI / NB430-S-LI (LiFePO4)

Typical Hardware for 8+ Hours:

Laptop/thin client, LCD, industrial thermal printer & scanner

Battery Type:

Sealed Lead Acid

Lithium Iron Phosphate

Continuous Output Power (W):

1000

Surge Power:

2000

Battery Bank(Wh):

1200

960

Charge Time:

5 hrs.

4.5 hrs.

Operating Temp (F):

32-104°

 50-95°

ROI Calculator

Use Newcastle Systems' ROI Calculator to calculate potential savings when you eliminate unnecessary walking to and from a static computer, high-volume printer or other electronic equipment used in your work process. --- Adjust the values below to better reflect values for your company.
