AP207nu2-s ERgonomic Mobile Powered Workstation

Scroll to zoom images +/-.

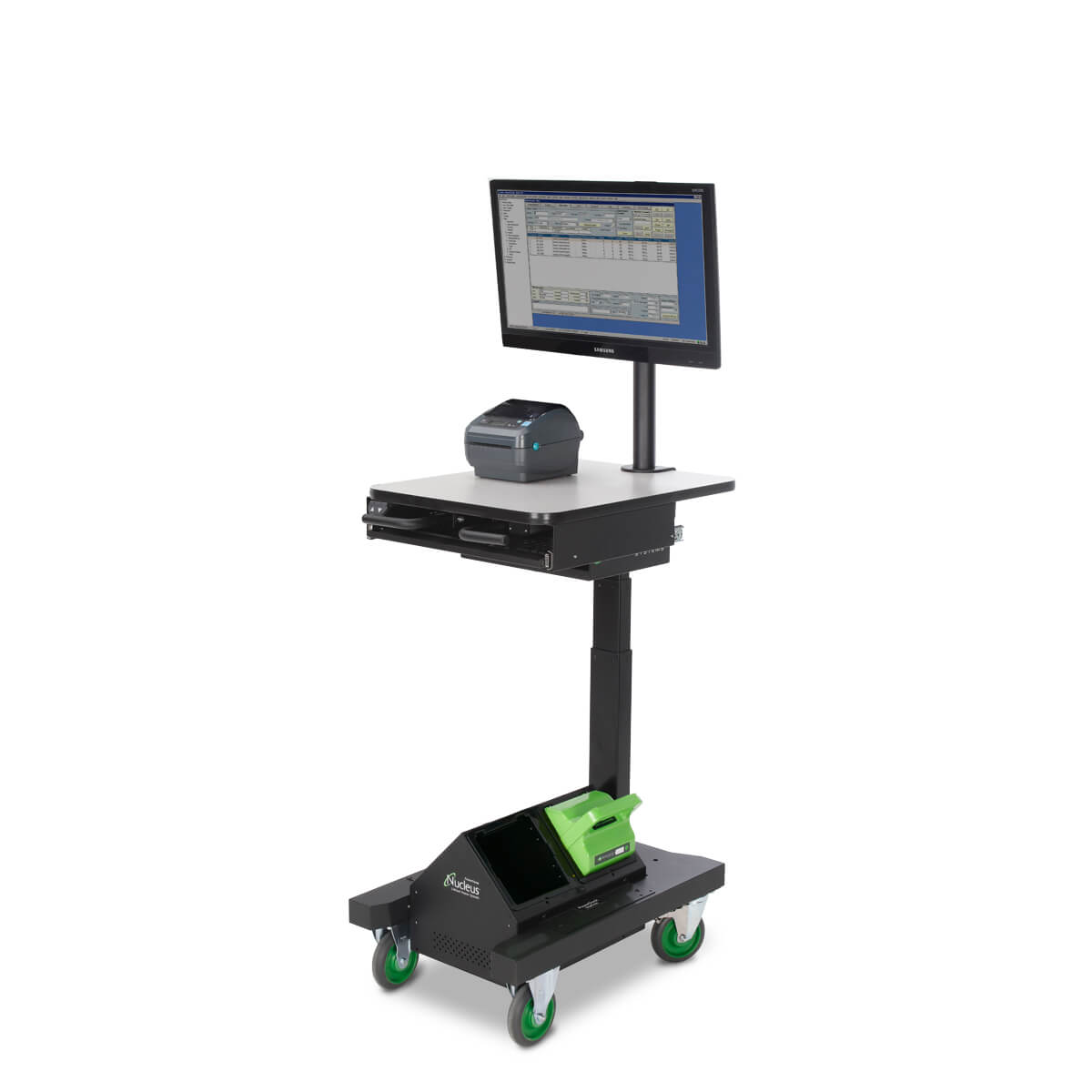

AP207NU2-S Electronic Height Adjust Powered Workstation

The ergonomic AP207NU-S comes standard with: (1) top shelf, locking casters, front push handles, integrated dual-bay docking station, built-in power strip, (2) swappable battery packs (PSNU3.6) and stand-alone battery charging station (PWC2).

Workstation:

Height Adjustable:

Top shelf electronically adjustable from 30 - 48" (762 - 1,219 mm)

Shelf:

Top shelf: 19” wide x 24.75” long laminated (483 x 629 mm)

Total Shelf Capacity:

55 lbs. (25 kg)

Casters:

5" x 2" (127 x 50 mm) rubber wheels, front fixed, rear locking swivel

Most Popular Optional Accessories:

B108 – Keyboard Tray
B266 – LCD Holder and Post
B269 – Thin Client Holder

Construction:

Steel

Color:

Black Powder Coat

Dimensions:

19” long x 26” wide x 30-48" high (483 x 660 x 762 - 1219 mm)

Weight:

109 lbs. (50 kg)


Integrated Power System:

Typical Hardware for 8+ Hours:

Laptop/thin client, &  LCD

Battery Type:

Lithium Iron Phosphate  (LiFePO4)

Continuous Output Power (W):

120 (1 battery) / 240 (2 batteries)

Surge Power:

550

Battery Bank (Wh):

460 / 920

Operating Temp (F):

50-104°


Swappable Battery Pack:
Nucleus_Battery_Alone_WebClick photo to enlarge.

Part Number:

PSNU3.6
Supports up to 460 WH per battery

Battery Type:

Lithium Iron Phosphate  (LiFePO4)

Dimensions:

6.5" W x 12.82" L x 6.4" H (165 x 326 x 163 mm)

Weight:

ll lbs. (5 kg)


Battery Charging Stations:
PowerDock Click photo to enlarge.

Part Numbers:

PWC2 / PWC2-FC

Charge Time:

8 hrs. / 4 hrs.

Operating Temp (F):

50-104°

Dimensions:

16"W x 11.6"L x 11.5"H (406 x 295 x 292 mm)

Weight:

20 lbs. (9 kg)

Downloads

  Data Sheet : Apex Series Workstations-2018
