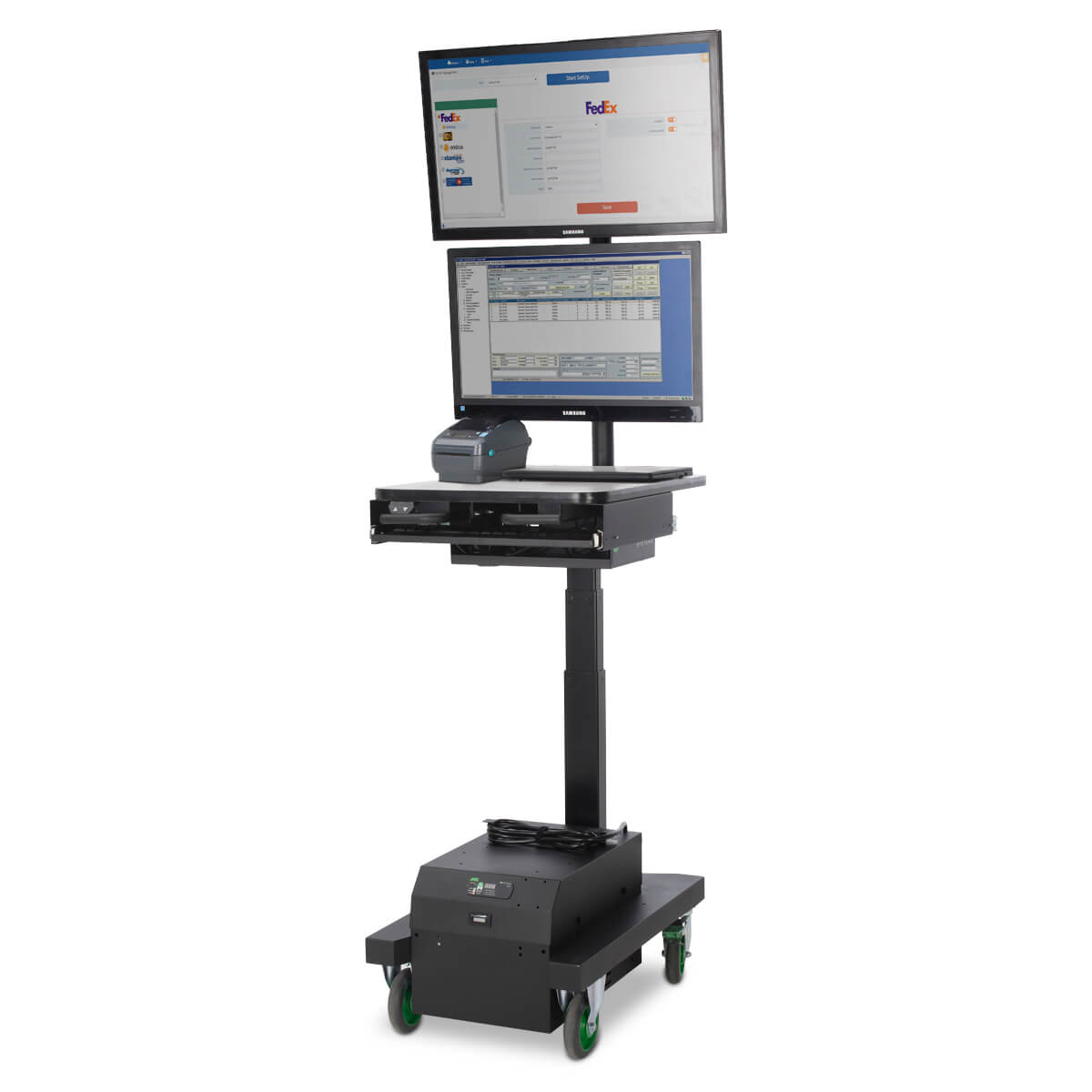

AP1010-S-LI

Height adjust powered cart, standard power package w/1280 Wh LiFePO4 battery (substitute for 100 Ah SLA)

The ergonomic AP1010-S-LI comes standard with: (1) top shelf, locking casters, integrated power system, power strip, and cord reel holder.

Data Sheet: APEX Series Height-Adjust Powered Carts



Workstation:

Height Adjustable:

Top shelf electronically adjustable from 30 - 48" (762 - 1,219 mm)

Shelf:

Top shelf: 19” wide x 24.75” long laminated (483 x 629 mm)

Total Shelf Capacity:

55 lbs. (25 kg)

Casters:

5" x 2" (127 x 50 mm) rubber wheels, front fixed, rear locking swivel

Most Popular Optional Accessories:

B108 – Keyboard Tray
B266 – LCD Holder and Post
B269 – Thin Client Holder

Construction:

Steel

Color:

Black Powder Coat

Dimensions:

19” long x 26” wide x 30-48" high (483 x 660 x 762 - 1219 mm)

Weight:

Fixed Lithium - 128 lbs. (58.2 kg)


Power System:

 Model Number:

 AP1010-S-LI

Typical Hardware for 8+ Hours:

Laptop/thin client, (2) LCDs & small or mid-range bar code printer

Battery Type:

 Lithium Iron Phosphate

Continuous Output Power (W):

1000

Surge Power:

2000

Battery Bank (Wh):

1280

Charge Time:

6 hours

Operating Temp (F):

50-95°

Use Newcastle Systems' ROI Calculator to calculate potential savings when you eliminate unnecessary walking to and from a static computer, high-volume printer or other electronic equipment used in your work process. --- Adjust the values below to better reflect values for your company.

Data Sheet: APEX Series Height-Adjust Powered Carts

AP1010-S-LI

Height adjust powered cart, standard power package w/1280 Wh LiFePO4 battery (substitute for 100 Ah SLA)

Compatible with

B266

B266

Single monitor holder, post mount. 20 lb. capacity, up to 27"

B268

B268

Dual monitor holder, post mount, stacked. 25 lb capacity, up to 27"

B108

B108

Keyboard tray (18 x 8") for NB SLIM & Apex Series

B112

B112

Laptop / tablet holder w/7" arm (adjustable 10"-17" wide) (12 x 10 x 6")

B132

B132

Scanner holder (6.5 x 3 x 7.5")

B146

B146

Printer shelf (attaches to mast) (10 x 8")

B269

B269

Thin client holder. (11 lb capacity. Depth adjustable .7 - 2.8". Requires B266, B267, or B268)

B285

B285

LiFePO4 battery, 1280 Wh (substitute for 100 ah SLA)
