AP1000

Electronic height adjust station with 30 x 36” worksurface (excluding power system)
Apex1000-LFacing-Web
Apex1000-LFacing-Web
Apex1000-LFacing-Web

Improved Comfort & Safety to Accommodate any Worker

The Heavy-Duty Apex 1000 Ergonomic Power Station is an essential component to any organization that is implementing or enhancing its “paperless process.” Operators & managers now have full-screen access to ERP, WMS, MES, and other information systems while on the move. Floor associates can go from standing to sitting with the touch of a button enabling them to complete their tasks quicker and safer. The AP1000's integrated power system allows associates to completely leverage their wireless facility. This workstation can seamlessly flow from task to task without cords or costly cable drops, adding a greater level of efficiency to every facility.

Data Sheet: APEX Series Height-Adjust Powered Carts



  • Large 36" W x 30" L worksurface: Plenty of room for equipment and area to work comfortably
  • Hanging Printer Shelf: Designed to accommodate most industrial barcode printers with easy access to replace labels and ribbons.
  • Multi-screen Capabilities: Holds up to (2) LCDs, either side by side, or vertically stacked.
  • Sit-Stand Option: Whether your worker's height is 5 feet or 6.5 feet - easily adjust in seconds with a touch of a button.

The AP1000 integrates perfectly with our legendary swappable power system that outpowers other batteries by 90%

Typical AP1000 configurations with the PowerSwap Nucleus® Lithium Power Systems consist of the following individual components:

Fully Swappable System with Stand-Alone Charging Station Swappable System with Onboard Charging
  • AP1000 Ergonomic Height Adjust Workstation
  • 2 to 4 Swappable Batteries (PSNU3.6)
  • PowerDock Station (PWD2C)
  • PowerCharge Station (PWC2C)
  • AP1000 Ergonomic Height Adjust Workstation
  • 1-2 Swappable Batteries (PSNU3.6)
  • PowerDock Hybrid Station with Integrated Charger (PWD2C-H-TSW)
  • PowerCharge Station (PWC2C) (Optional)
Once the battery charge is depleted, simply swap it with a fully charged one in a matter of seconds enabling a 24/7 operation Once battery charge is depleted, plug into a wall outlet to charge in about 4-5 hours.

Expand your capabilities by adding the stand-alone PowerCharge Station (PWC2C) for a fully swappable system - and just charge onboard when you need it.

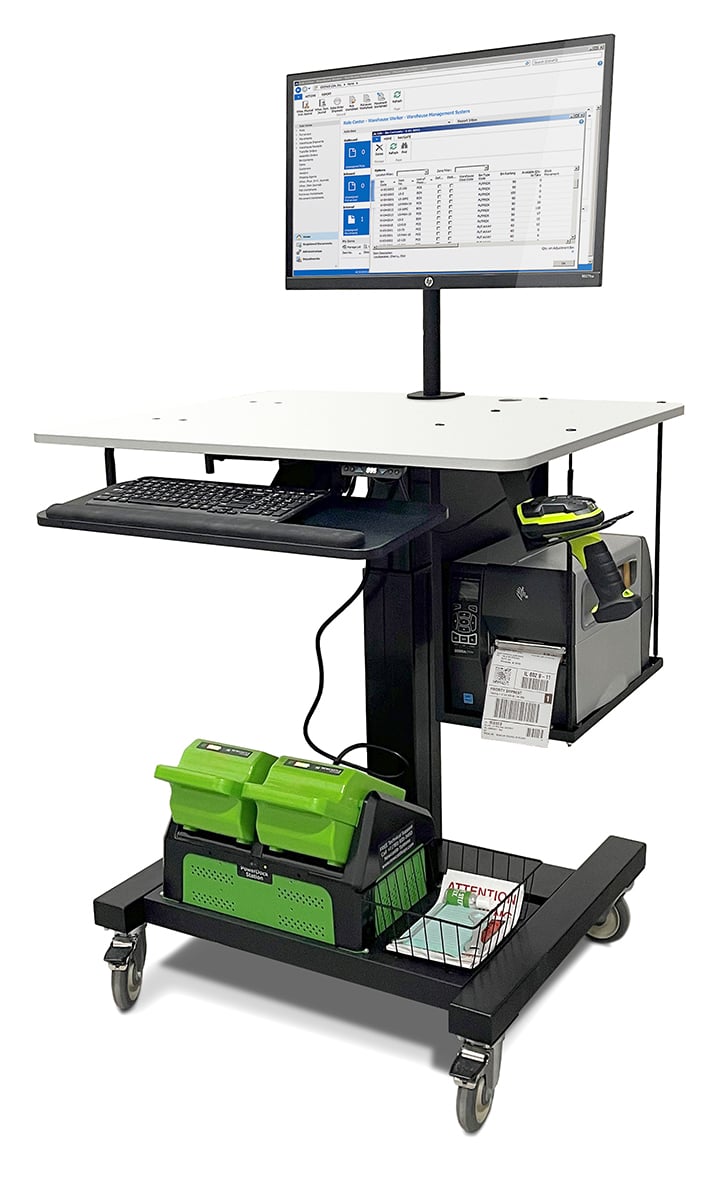

AP1000 Electronic Height-Adjust Station

Apex1000-LFacing-Web

Height Adjustable: 33-48” (838-1,219 mm)
Top Work Surface:  36” wide x 30” long (914 x762 mm)
Total Weight Capacity: Up to 120 lbs. (55 kg)
(Includes weight of printer on B311 hanging printer shelf)
Casters: 5” (127 mm) non-marking
4 locking swivel
Dimensions & Weight:

36” wide x 30” long x 33-48” high
(914 x 762 x 838-1,219 mm)

Non-powered: 112 lbs. (51 kg)
Swappable 2/4 battery system: 164 / 186 lbs. (74 / 84 kg)



Swappable Battery Power Docking Station:

PowerDock-R

Power System Components: PowerDock Dual (PWD2C)
Compatibility: Easily integrates  with AP1000 Electronic Height Adjust Station
Continuous Output Power (W): 120 (1 battery in dock) / 240 (2 batteries in dock)
Surge Power (W): 550 / 825
Battery Bank (Wh): 460 / 920
Operating Temp. Range (F): 50-104°
Hot Swappability: Yes
Dimensions & Weight: 17.75" W x 11.63" L x 10" H / 15 lbs.
(451 x 295 x 254 mm) / (6.8 kg)



Swappable Battery Stand-Alone Charging Station:

PowerCharge-R

Charging System Components: PowerCharge Dual (PWC2C)
Approximate Charge Time (Hrs): 4 to 5
Operating Temp. Range (F): 50-104°
Dimensions & Weight: 17.75" W x 11.63" L x 10" H / 15 lbs.
(451 x 295 x 254 mm) / (6.8 kg)

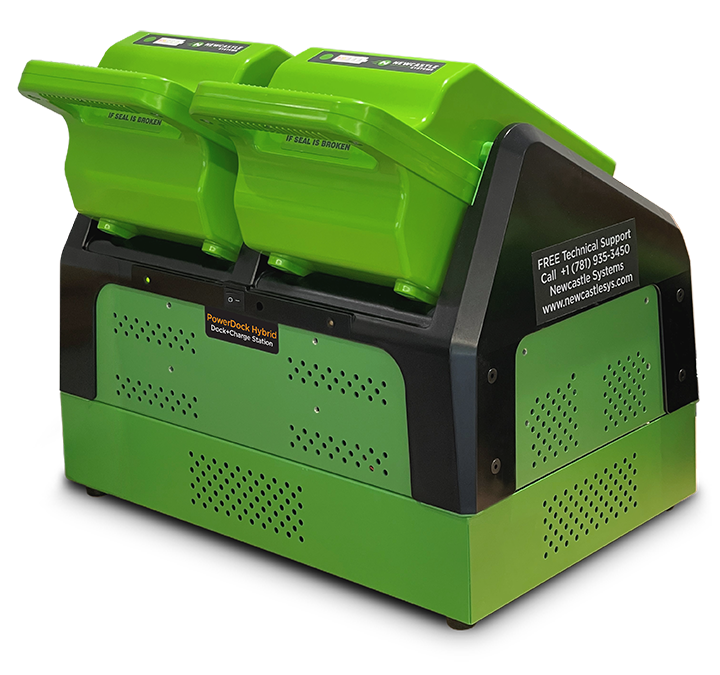

Power Docking Station with Integrated Charger:

PowerDock_Hybrid_Web

Power System Components: PowerDock Hybrid (PWD2C-H-TSW)
Compatibility: Easily integrates with AP1000 Electronic Height Adjust Station
Continuous Output Power (W): 120 (1 battery) / 240 (2 batteries)
Surge Power (W): 550 / 700
Battery Bank (Wh): 460 / 920
Approximate Charge Time (Hrs): 4 to 5
Operating Temp. Range (F): 50-104°
Hot Swappability: Yes
Dimensions & Weight: 17.75" W x 11.63" L x 113" H / 20 lbs.
(451 x 295 x 330 mm) / (9.1 kg)



Swappable Battery:

Nucleus_Battery_Alone_Web

Battery Pack: PSNU3.6 Lithium Iron Phosphate; Supports up to 460 Wh
Dimensions & Weight: 6.5" W x 12.82" L x 6.4" H / 11 lbs.
(165 x 326 x 163 mm) / (5 kg)

AP1000

Electronic height adjust station with 30 x 36” worksurface (excluding power system)

Compatible with

B266

B266

Single monitor holder, post mount. 20 lb. capacity, up to 27"

B267

B267

Dual monitor holder, post mount, side by side. 20 lb capacity, up to 27"

B268

B268

Dual monitor holder, post mount, stacked. 25 lb capacity, up to 27"

B107

B107

Heavy-duty keyboard & mouse tray (20 x 9") for NB Series (24" wide) and PC Series

B112

B112

Laptop / tablet holder w/7" arm (adjustable 10"-17" wide) (12 x 10 x 6")

B132

B132

Scanner holder (6.5 x 3 x 7.5")

B269

B269

Thin client holder. (11 lb capacity. Depth adjustable .7 - 2.8". Requires B266, B267, or B268)

B311

B311

Apex 1000 Hanging Printer Shelf

PSNU3.6

PSNU3.6

PowerSwap Nucleus® Classic Lithium Iron phosphate 460 Wh (36 Ah) battery
